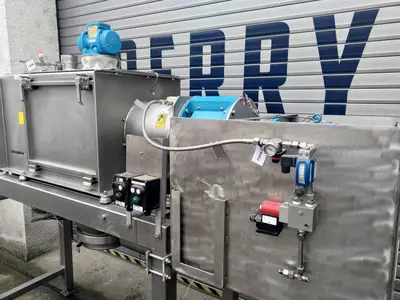

Used J. Engelsmann model VIRO 300-800-4571-St/FDA-compliant polished stainless steel (AISI 316Ti) cylindrical rotary sifter. Cylindrical screen measures 300 mm diameter x 600 mm length. A 3-blade rotor is driven via an Ex Stöber gearbox by a 3.0 kW, 400 V, 1425 rpm, 50 Hz Ex electric motor, resulting in a final speed of 602 rpm. There is also an ATEX vibro motor, 0.26 kW, 400 V, 3000 rpm, 50 Hz, installed above the screen to increase screening efficiency. The feeding inlet has a diameter of 120 mm. The discharge hopper for particles smaller than the holes of the screen has a pneumatic valve and a diameter of 300 mm. The discharge hopper for particles larger than the holes of the screen has a diameter of 250 mm. Mounted on a stainless steel frame. Overall dimensions are approximately 2600 mm x 800 mm x 2280 mm (height), weight approximately 500 kg.
