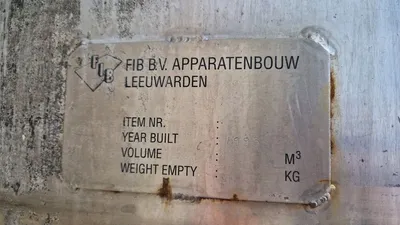

6,000 Litre FIB Apparatenbouw Stainless Steel (AISI 316) Vertical Mixing Tank

Description

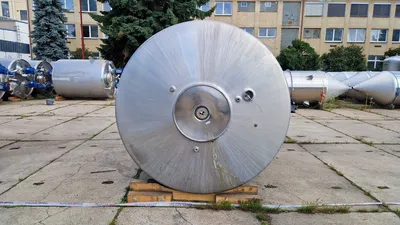

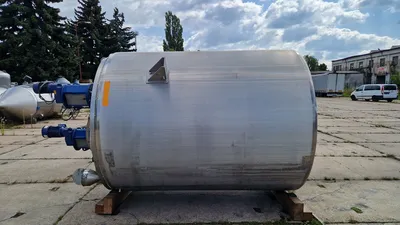

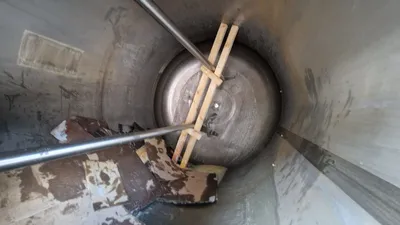

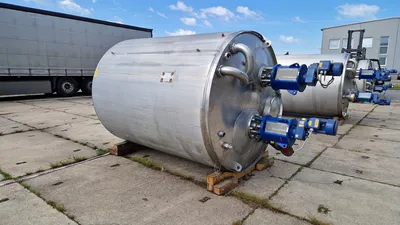

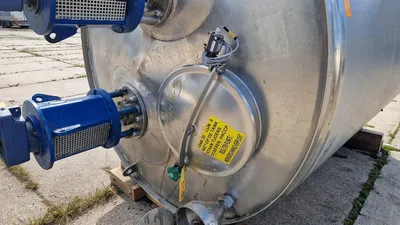

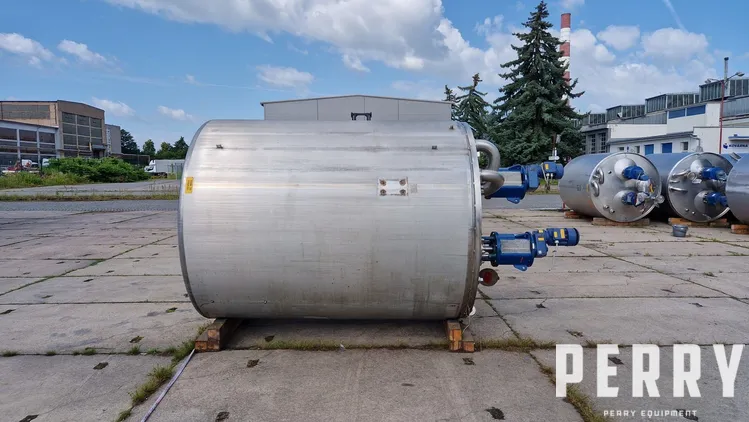

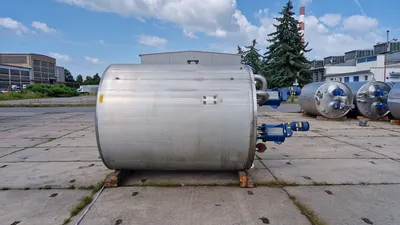

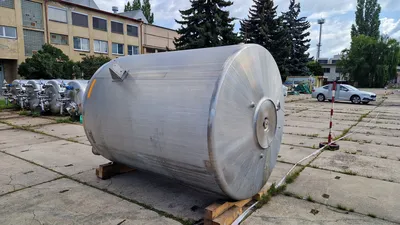

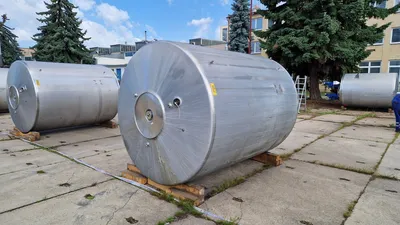

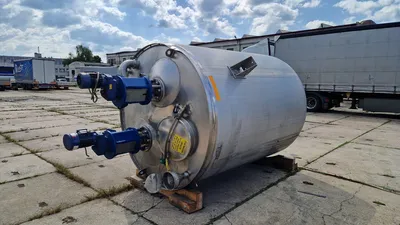

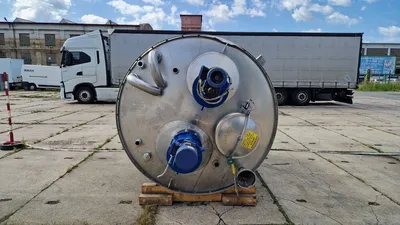

Used Hoeksma & Velt stainless steel vertical mixing tank with a volume of 6,000 litres. The unit has welded dished top and bottom heads. Internal rated atmospheric pressure at a maximum temperature of 90°C; the vessel is insulated. The unit measures approximately: 1,820 mm inner diameter (1,900 mm outer diameter) × 2,330 mm straight side height × 3,650 mm total height. Central bottom discharge with a diameter of 50 mm and pneumatically operated GEA valve. The unit has two top-mounted off-centre agitators: one stainless steel impeller-type agitator driven via a NORD gearbox by a 0.75 kW, 1,415 rpm, 50 Hz electric motor; one stainless steel double impeller-type agitator driven via a NORD gearbox by 1.1/1.4 kW, 1,400/2,780 rpm, 50 Hz electric motor. The lid is equipped with several flanges and an inspection hole with a diameter of approximately 500 mm. Mounted on three lugs.
