8000 CFM Sturtevant Carbon Steel Steam Micronizer Fluid Energy Grinding Mill
Have one to sell?
ConditionUsed
1 available

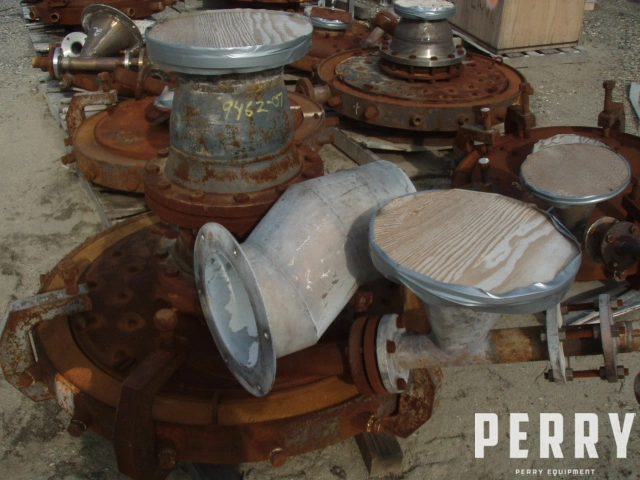

Used Sturtevant steam microniser fluid energy grinding mill.
Carbon steel.
42" diameter grinding chamber. Top: (1) 3" tangential feed air/gas/steam inlet nozzle equipped with a 10" diameter x 10½" deep feed funnel, and 10" feed pipe; (1) 12" centre outlet equipped with 304L stainless steel 12" x 10" bell reducer.
Side: (16) 1½" female threaded steam inlet nozzles; (1) 3" side grind air/gas/steam nozzle.
(6) Clamps.
8000 CFM. Rated up to 10,000 lbs/hour.
