Unused 3,987 Square Foot Shell/Tubes Heat Exchanger, 10/FV Shell, 60 psi Tubes

Description

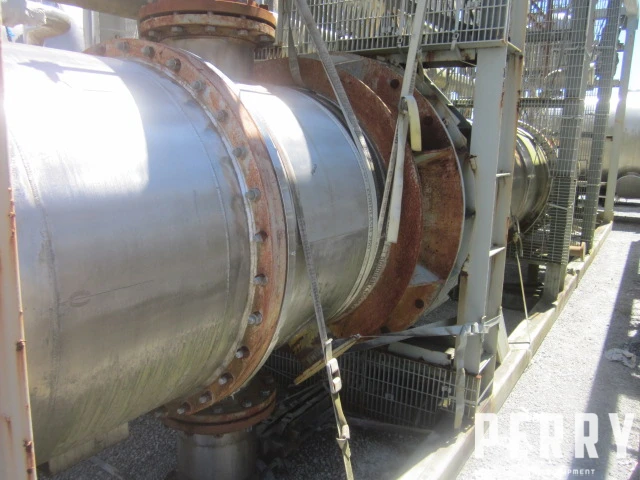

Unused Approximately 3,987 Square Foot Shell/Tubes Heat Exchanger
Manufacturer: Praj Industries
Surface area: 3,987 square feet
Serial number: 06D058-H1603
Year: 2008
MAWP shell: 10/FV @ 320°F
MAWP tubes: 60 psi @ 113°F
Material of shell: 304L stainless steel
Material of tubes: 304L stainless steel
Dimensions: 5 ft diameter x 22 ft 7 in length
Additional information: vertical design, heads: 304L stainless steel, tube pitch: 1.25 inches, tube wall: 0.063 inches, shell nozzles: 4 inches, 14 inches, tube nozzles: 1 inch, 12 inches, number of baffles: 6, baffle spacing: 2 ft 1 in, lug supports, (4) lifting trunnions
