1,204 Square Foot Stainless Steel Shell/Tube Heat Exchanegr, New 2010
Have one to sell?
ConditionUsed
1 available

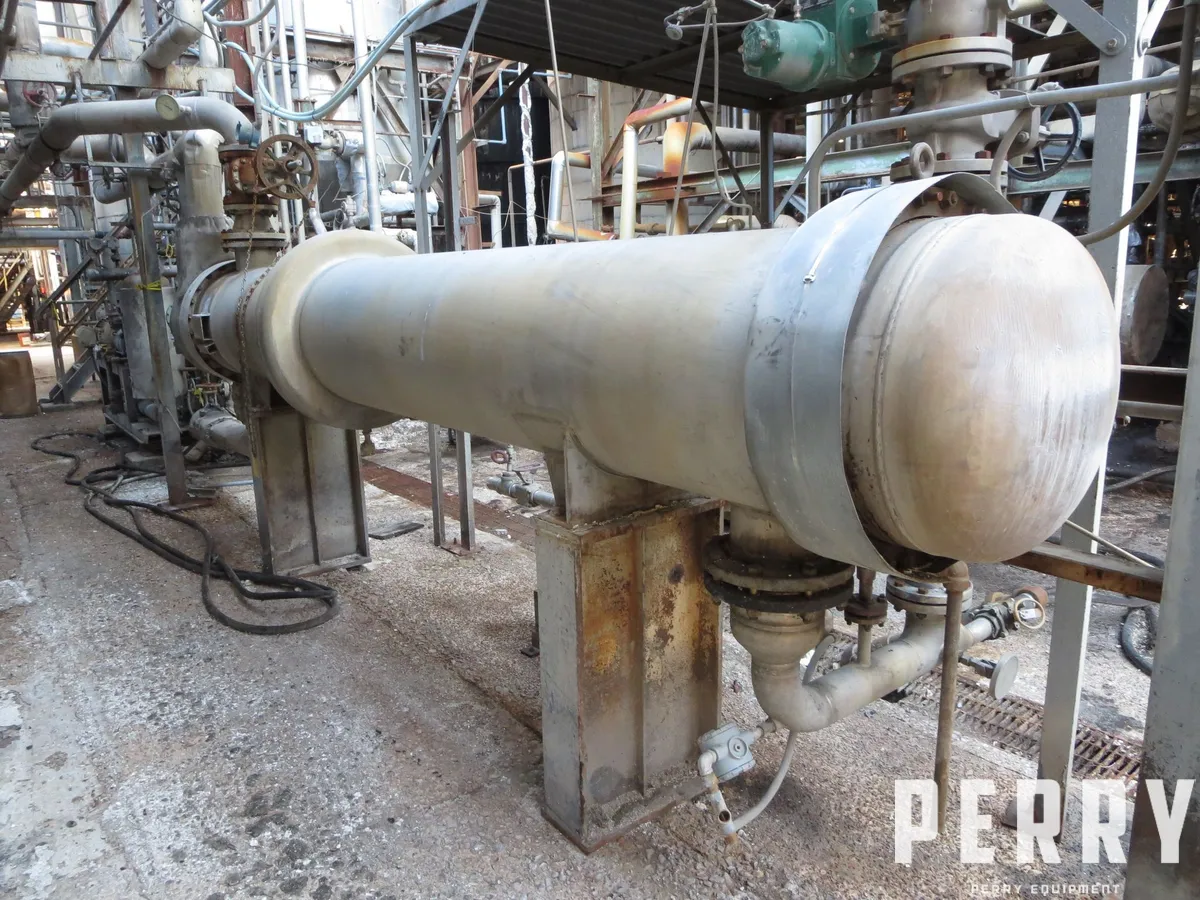

Used Perry Products stainless steel shell-and-tube heat exchanger. Approximately 24 in. diameter x 14 ft long. 438 tubes, 3/4 in. OD x 0.083 in. wall, 304L stainless steel, 15/16 in. triangular pitch. 6-pass tube side / 1-pass shell side. Rated 200 psig at 350°F shell side and 200 psig at 500°F tube side. ASME Section VIII Div. 1, TEMA Class C construction. Includes removable tube bundle, flanged expansion joint, internal baffles and saddle supports. Approximate dry weight 6,000 lb.
Used Perry Products stainless steel shell-and-tube heat exchanger. Approximately 24 in. diameter x 14 ft long. 438 tubes, 3/4 in. OD x 0.083 in. wall, 304L stainless steel, 15/16 in. triangular pitch. 6-pass tube side / 1-pass shell side. Rated 200 psig at 350°F shell side and 200 psig at 500°F tube side. ASME Section VIII Div. 1, TEMA Class C construction. Includes removable tube bundle, flanged expansion joint, internal baffles and saddle supports. Approximate dry weight 6,000 lb.
Imperial
| Surface Area | 1,204 ft² |
| Material of Shell | Carbon Steel |
| Material of Tubes | Stainless Steel |
| Shell Side Max. Pressure | 200 PSI |
| Shell Side Max. Temp. | 350°F |
| Tube Side Max. Pressure | 200 PSI |
| Tube Side Max. Temp. | 500°F |
| Configuration [Vertical/Horizontal] | Horizontal |
| Tube Diameter | 1" |
| Number of Tubes | 438 |
