Unused 745 Square Foot Shell/Tube Heat Exchanger, New 2016
Have one to sell?
ConditionUsed
1 available

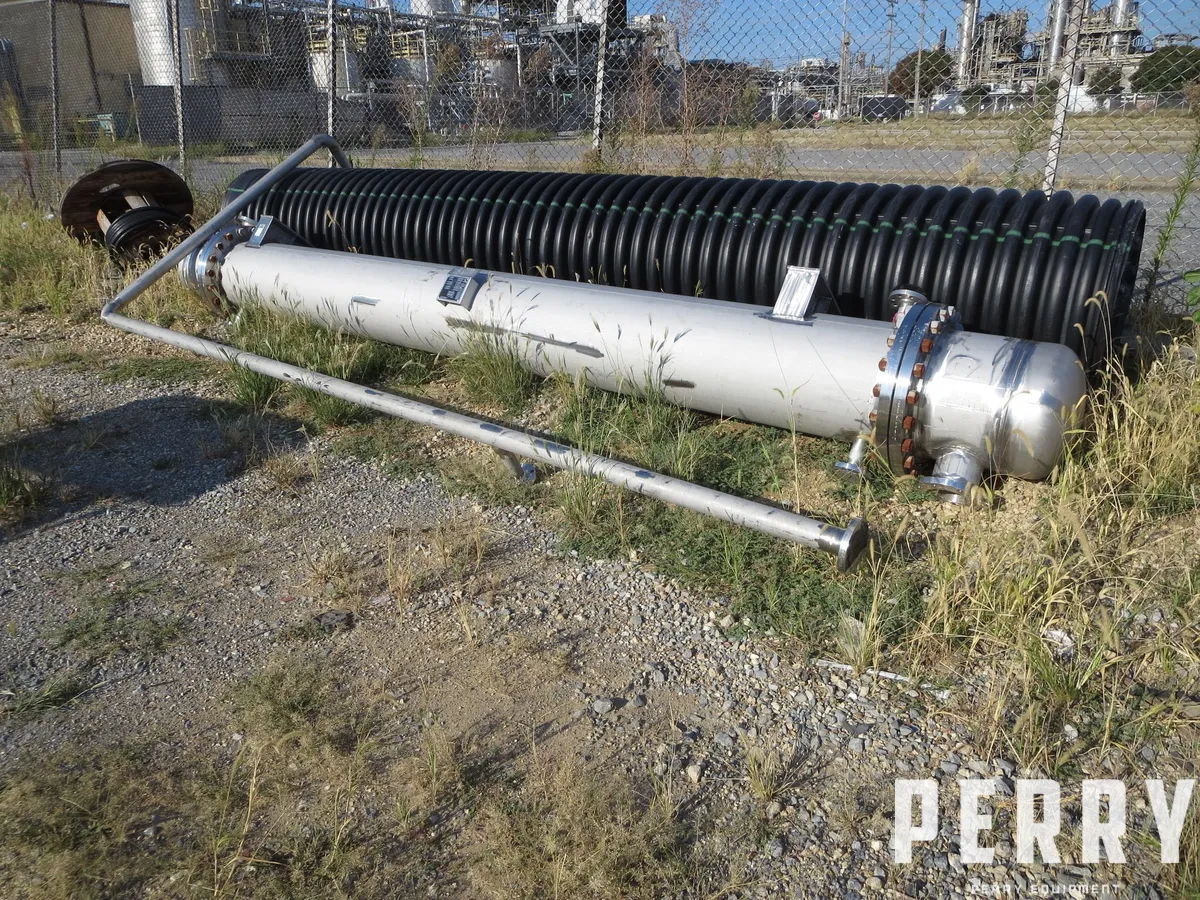

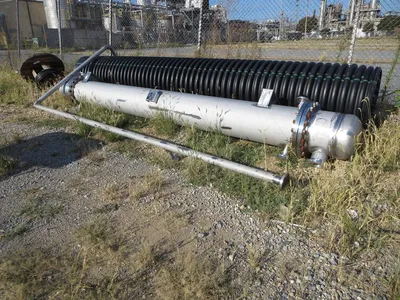

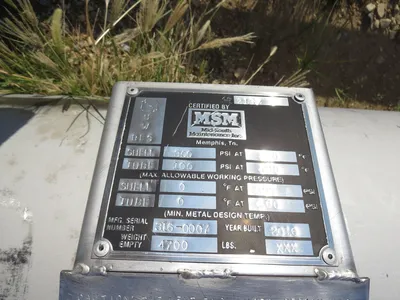

Unused Mid-South Maintenance shell and tube heat exchanger. Horizontal design. Manufactured 2016. Shell rated 300 PSI MAWP; tube side rated 100 PSI MAWP. Minimum metal design temperature: 0°F. Bolted removable end heads, multiple flanged process connections, and support saddles. Manufacturer serial number 316-0007. Empty weight approximately 4,700 lbs. ASME rated.
Unused Mid-South Maintenance shell and tube heat exchanger. Horizontal design. Manufactured 2016. Shell rated 300 PSI MAWP; tube side rated 100 PSI MAWP. Minimum metal design temperature: 0°F. Bolted removable end heads, multiple flanged process connections, and support saddles. Manufacturer serial number 316-0007. Empty weight approximately 4,700 lbs. ASME rated.
Imperial
| Surface Area | 745 ft² |
| Material of Shell | Stainless Steel |
| Material of Tubes | Stainless Steel |
| Shell Side Max. Pressure | 300 PSI |
| Shell Side Max. Temp. | 500°F |
| Tube Side Max. Pressure | 100 PSI |
| Tube Side Max. Temp. | 500°F |
| Configuration [Vertical/Horizontal] | Horizontal |
