Used HOWARD INDUSTRIES Substation Transformer | Transformer Oil Filled

Description

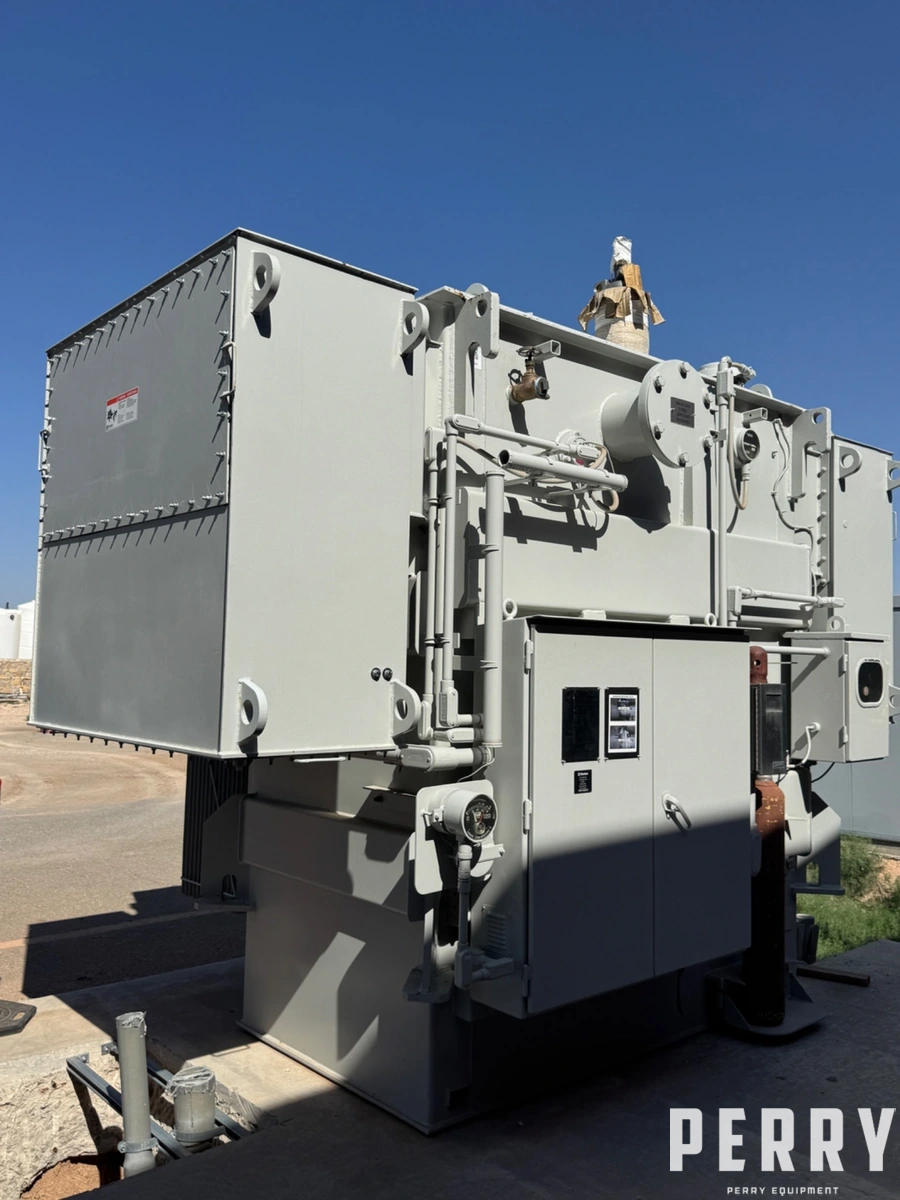

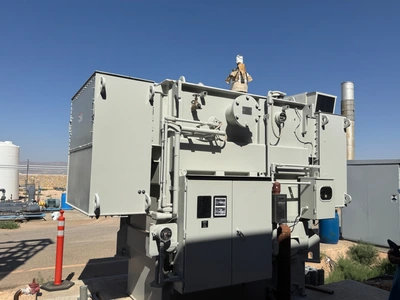

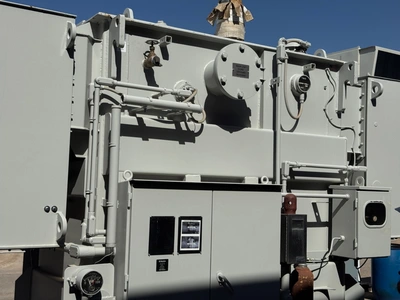

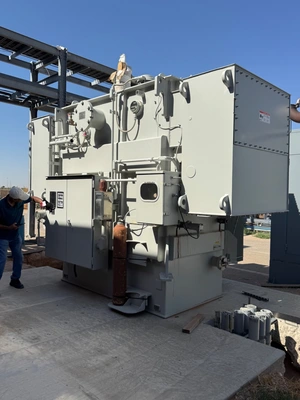

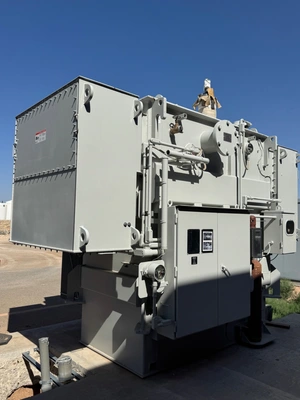

Howard Substation Transformer Rated At 8400/10500 KVA, Manufactured 2012, Serial Number: 189140-1812, FR3 Fluid Filled, Class ONAN/ONAF, Three Phase 60 Hz. 65 °C Rise, Imp: 6.72%, Copper Wound, Neutral Bushings.

High Voltage: 13800 V Delta Bil 110 KV Side with ATC
Low Voltage: 4160 Y/2400, Bil: 110 KV Side with ATC
Neutral Bushing at Top
Taps: 14490-14150-13800-13460-13110
Core And Coils 21,880 Lbs.
Tank And Fittings 16,965 Lbs.
Liquid (1858 Gal) 14,035 Lbs.
Total 55,880 Lbs.

Accessories:
Liquid Level Gauge
Dial Type Thermometer
Pressure-Vacuum Gauge
Pressure Relief Valve
2” Drain Valve With 3/8” Sampler
1” Upper Fill Plus and Filler Press Connection
Gas Sample Valve
Made In USA
