2016 EATON 2500 KVA Transformer

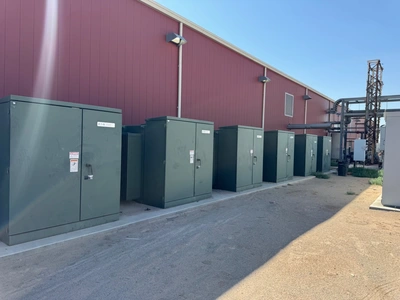

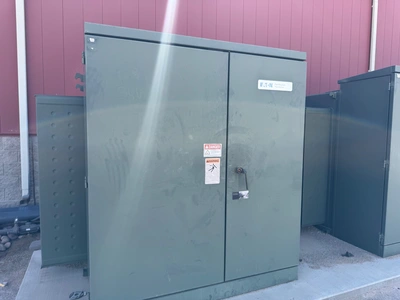

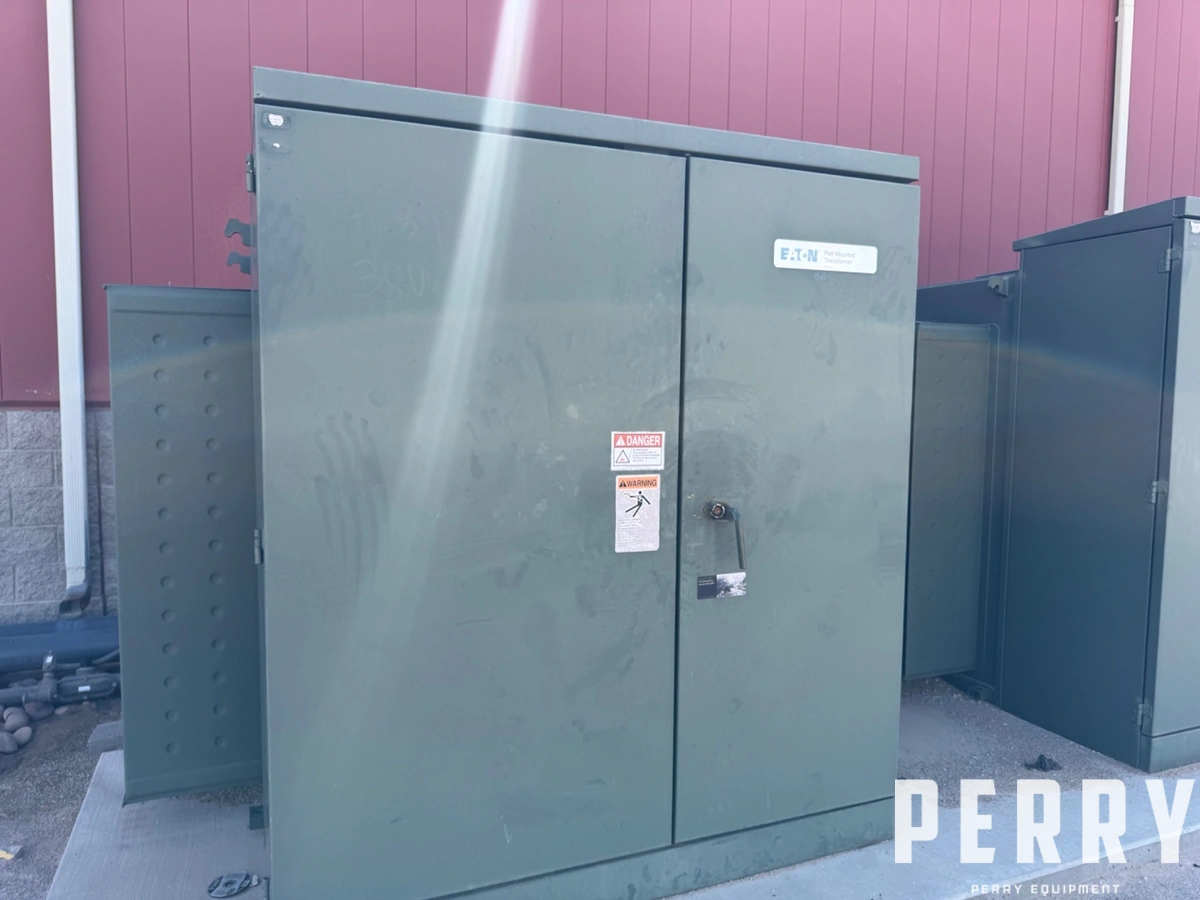

Used 2500 kVA Cutler-Hammer/ABB pad mount transformer live front, 3-phase, 60 Hz, 65°C rise, aluminum winding, non-PBC biodegradable fluid filled, 6.17% impedance, 5-position de-energized tap changer, built 09/16, made in USA. HV: 4160 V, 75 kV BIL taps 4370-4265-4160-4055-3950 LV: 480 V Y/277 spade bushing, 30 kV BIL Approximate weight: Core & coil 7110 lbs Case 4308 lbs Oil (622 gal) 4665 lbs Total weight 16083 lbs Accessories: Liquid level gauge Liquid temperature gauge Pressure-Vacuum Gauge Pressure relief valve 2” drain valve with 3/8” sampler 1” upper fill plus and filler press connection Tap changing switch Gorunding pad with connector Bushing spade connectors on LV and HV
