Used 2016 EATON 2500 KVA Transformer | Transformer Dry Type

Description

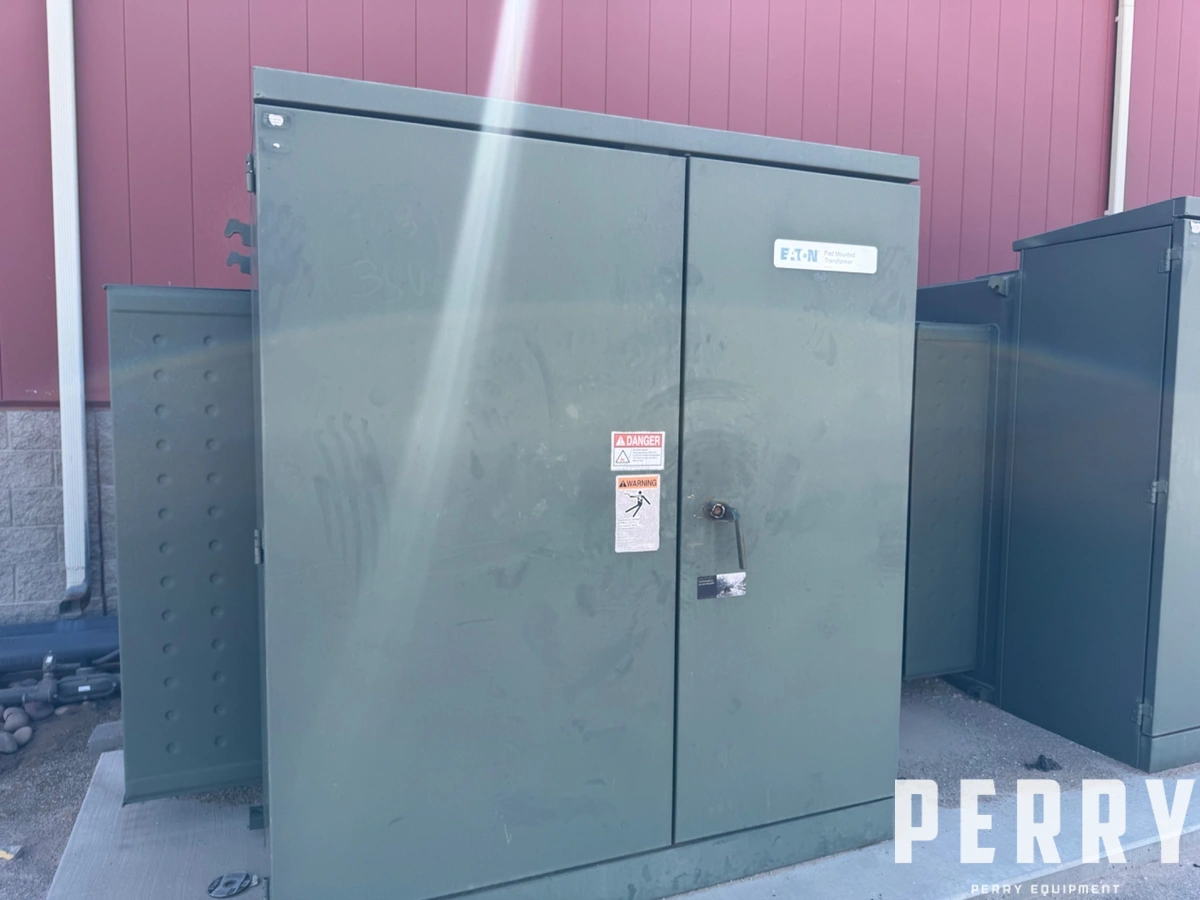

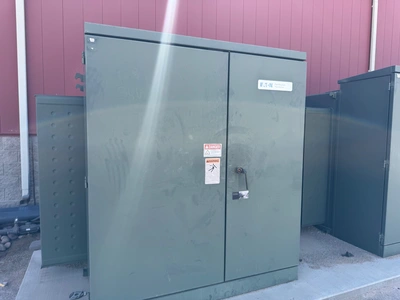

Used 2500 kva Cutler-Hammer/ABB pad mount Transformer live front, 3 phase, 60 hz, 65 deg C rise, Aluminum winding, non-pcb biodegradable fluid filled, 6.17% impedance, 5 position de-energized tap changer , Style No. F4KE268J5T, S/N: 16JC829730006 Built 09/16, Made in USA.
HV: 4160 V, 75 kv BIL taps 4370-4265-4160-4055-3950
LV: 480 v Y/277 spade bushing, 30 kv BIL
Approximate weight:
Core & coil 7110 lbs
Case 4308 lbs
Oil (622 gal) 4665 lbs
Total weight 16083 lbs

Accessories:
Liquid level gauge
Liquid temerature gauge
Pressure-Vacuum Gauge
Pressure relief valve
2” drain valve with 3/8” sampler
1” upper fill plus and filler press connection
Tap changing switch
Gorunding pad with connector
Bushing spade connectors on Lv and HV
