3,840 Gallon 316L Stainless Steel Jacketed Mix Tank
Have one to sell?
ConditionUsed
1 available

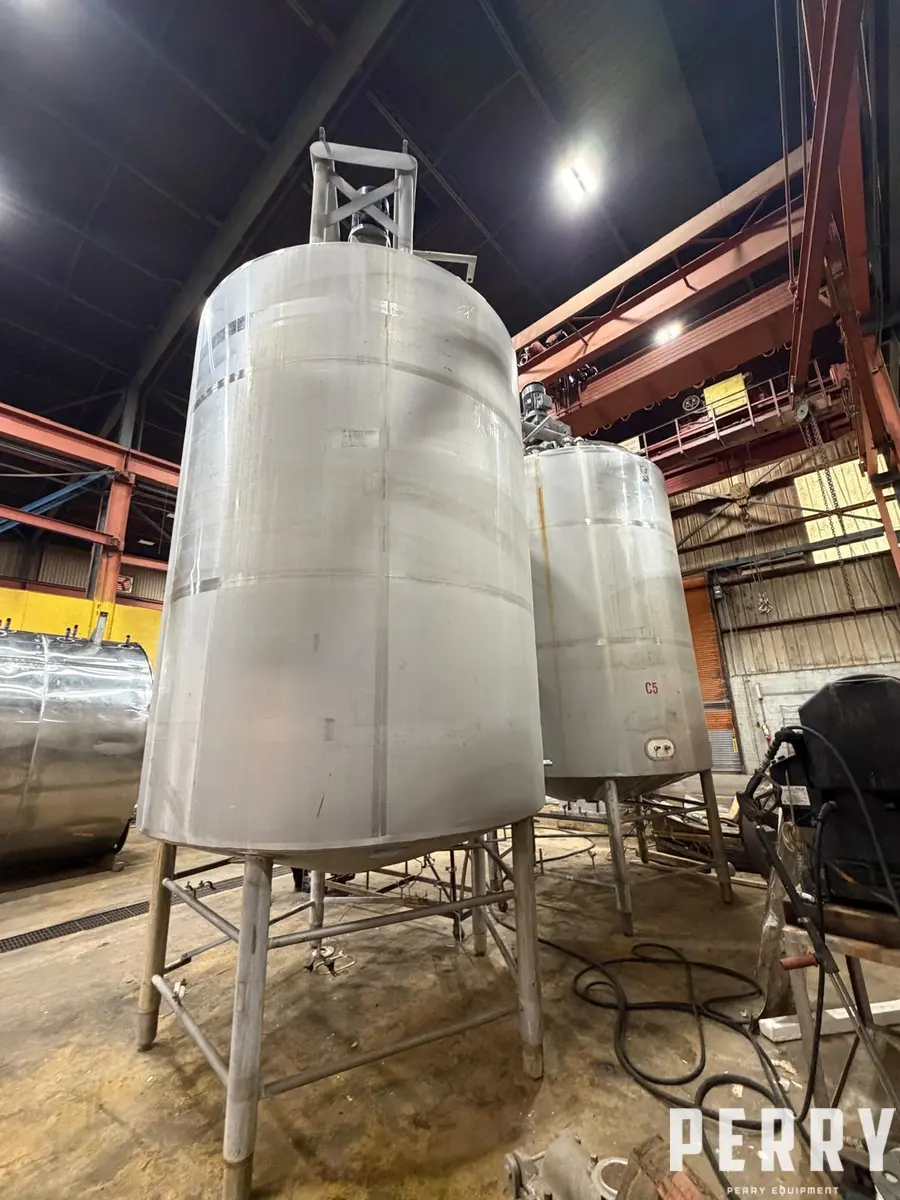

Used approximately 3840 gallon 316L stainless steel jacketed mix tanks. Approximately 92” ID, 99” OD X 124” straight side. Dome top with bridge-mounted agitator. 3-tier agitator. Nord drive 15 hp. 18-59 rpm output. Conical bottom with center bottom outlet. Dimple jacket rated 80 psi @ 100 degrees F. Built 2006. On legs. Drawing attached.
Used approximately 3840 gallon 316L stainless steel jacketed mix tanks. Approximately 92” ID, 99” OD X 124” straight side. Dome top with bridge-mounted agitator. 3-tier agitator. Nord drive 15 hp. 18-59 rpm output. Conical bottom with center bottom outlet. Dimple jacket rated 80 psi @ 100 degrees F. Built 2006. On legs. Drawing attached.
Imperial
| Capacity | 3,840 gal |
| Type of Stainless | 316 Stainless Steel |
| Jacket [Y/N] | Yes |
| Mixer/Agitator [Y/N] | Yes |
| Diameter | 92" |
| Straight Side | 124" |
| Vertical/Horizontal | Vertical |
| Legs/Lugs/Skirt/Saddle | Legs |
