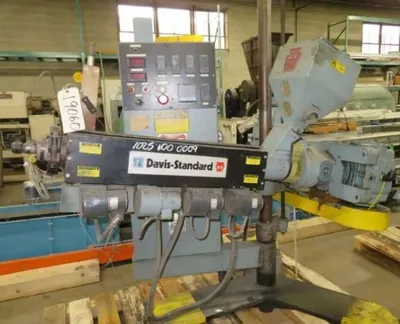

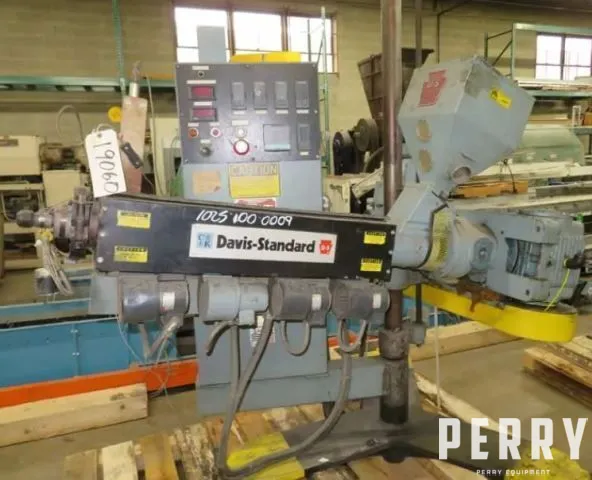

1.5" 24/1 L/D Davis Standard Pedestal Extruder

Description

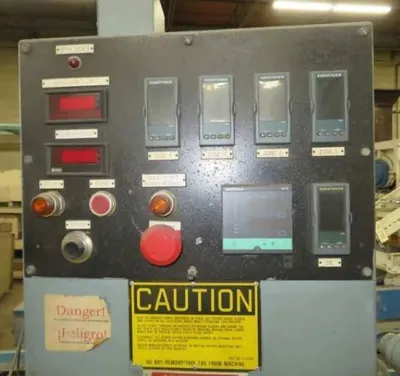

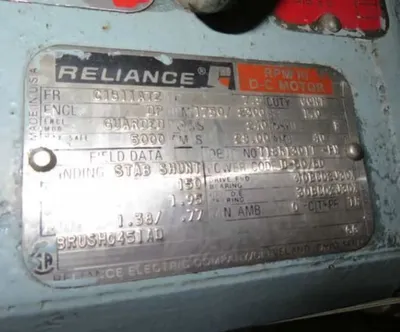

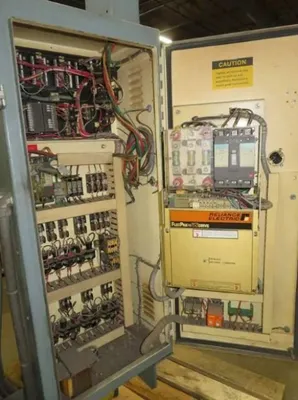

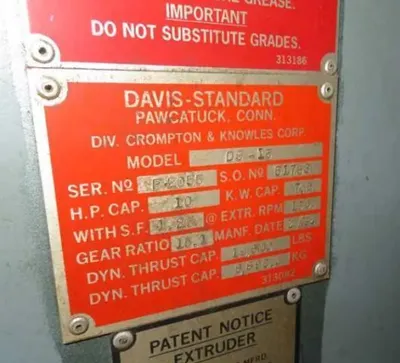

Used 1.5” 24/1 L/D Davis Standard pedestal Extruder. Model DS-15, serial #P2055, Shop Order #51763, new 1996. Has a four (4) zone electrically heated and air-cooled barrel. Unit is mounted on a tripod with casters. Has Locking legs and gravity feed hopper. Textron gearbox has a reduction ratio of 15:1 and is rated at 10.2 HP at a service factor of 1. Gearbox is belt driven by a 7.5 HP Reliance 230volt/3/60 1775 RPM inverter duty A/C motor with Allen Bradley Powerflex 700 drive. Barrel can be raised or lowered and can also tilt for co-extrusion applications. Includes hopper and unitized control panel with Six (7) zones of Eurotherm instruments, 4-barrel and 2 die. C-Clamp on barrel discharge.
