Lleal 150 Litre Stainless Steel Vertical Reactor
Have one to sell?
ConditionUsed
1 available

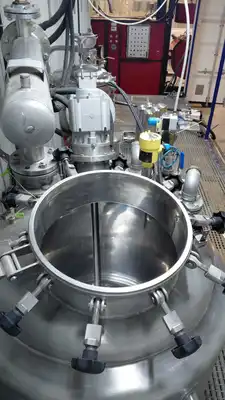

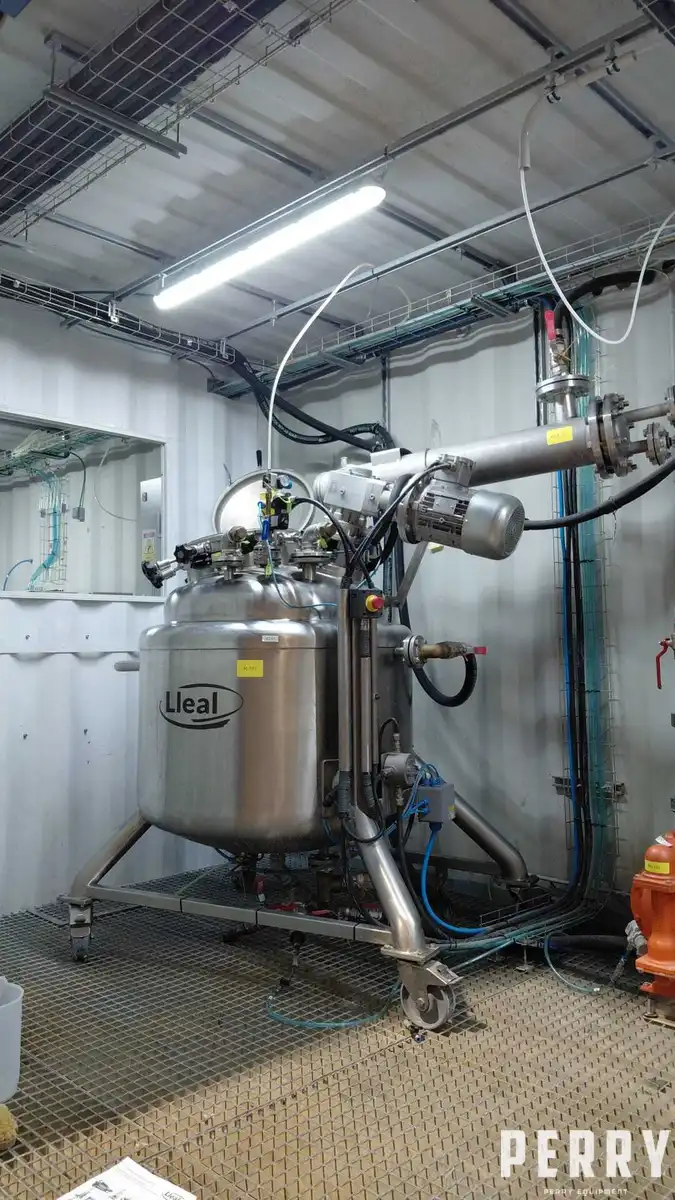

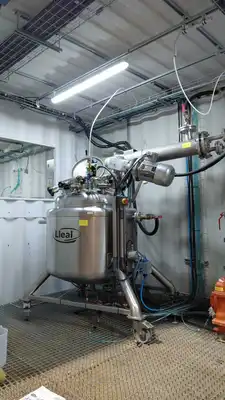

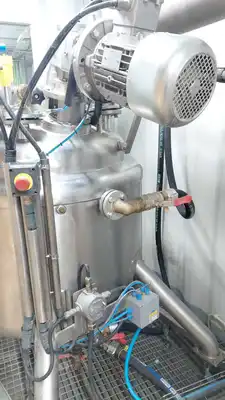

Used Lleal approximately 150 litre working capacity and 300 litre total capacity (product dependent) vertical 316L stainless steel reactor. Unit has a welded dished top and bottom heads. Internal rated 5 bar pressure at 150 deg.c.External stainless steel jacket rated 3bar pressure at 200 deg.c. Unit has a top entry off-set propeller agitator driven by a 3kW, 1455rpm at 50 hz, 230/400 volts motor. Unit is mounted on 4 legs with wheels. Includes local controls.
Used Lleal approximately 150 litre working capacity and 300 litre total capacity (product dependent) vertical 316L stainless steel reactor. Unit has a welded dished top and bottom heads. Internal rated 5 bar pressure at 150 deg.c.External stainless steel jacket rated 3bar pressure at 200 deg.c. Unit has a top entry off-set propeller agitator driven by a 3kW, 1455rpm at 50 hz, 230/400 volts motor. Unit is mounted on 4 legs with wheels. Includes local controls.
Imperial
| Capacity | 79 gal |
| Type of Stainless | 316 Stainless Steel |
| Internal Pressure | 73 PSI |
| Internal Temperature | 302°F |
| Jacket Pressure | 44 PSI |
| Jacket Temperature | 392°F |
| Mixer/Agitator [Y/N] | Yes |
| Legs/Lugs/Mounting Ring | Legs |
