Unused FEECO 7'6" ID × 35' Direct-Fired Rotary Kiln System

Description

FEECO 7'6" ID × 35' Direct-Fired Rotary Kiln System:

FEECO International direct-fired rotary kiln originally designed for the thermal treatment of recycled battery-derived material for cobalt and nickel recovery. The kiln was initially engineered to operate at temperatures up to approximately 2,300°F, subject to the type and condition of the installed refractory.

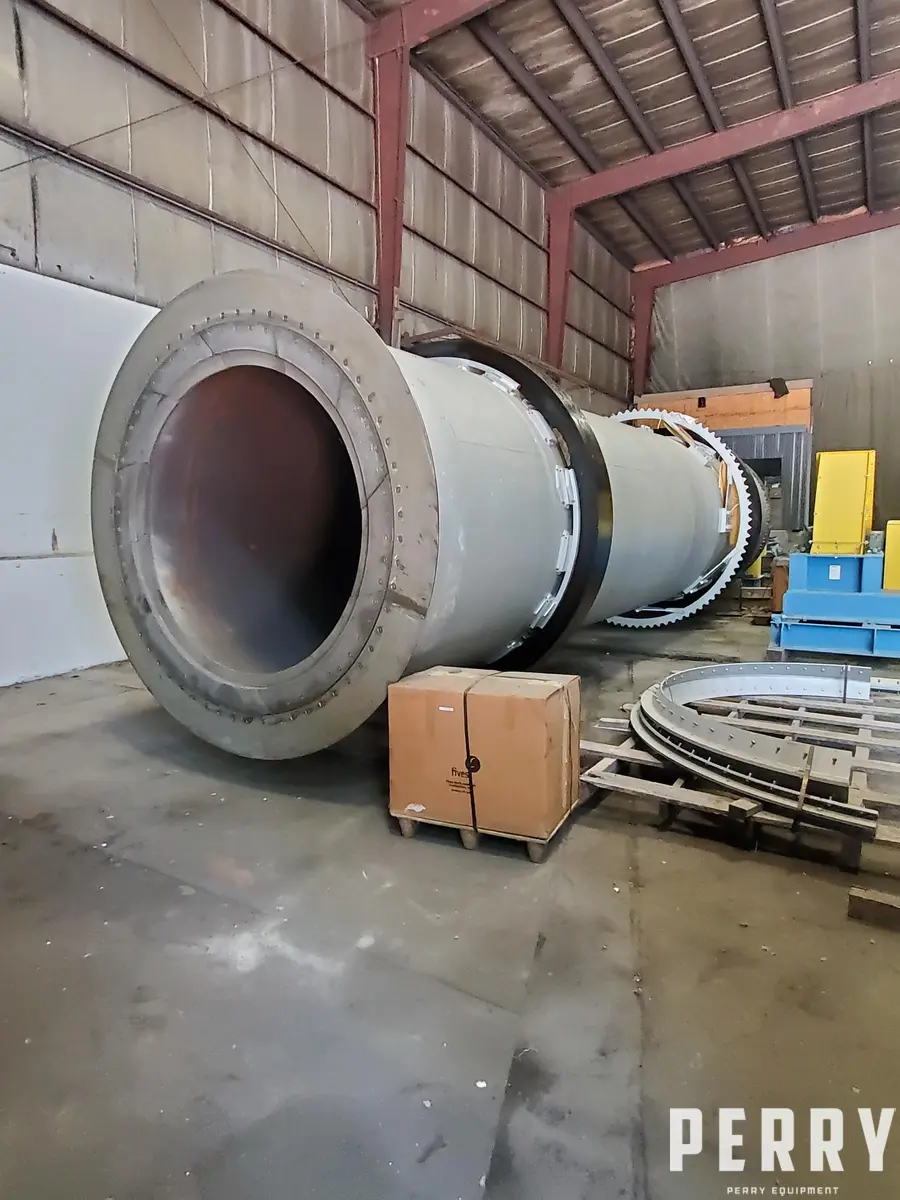

The system features a refractory-lined carbon-steel rotary drum measuring approximately 7'6" inside diameter × 35' long. The drum operates at approximately 2.88 RPM with a slope of 0.25" per foot. Approximate overall assembled dimensions are 46' long × 12'5" wide × 14'2" high.

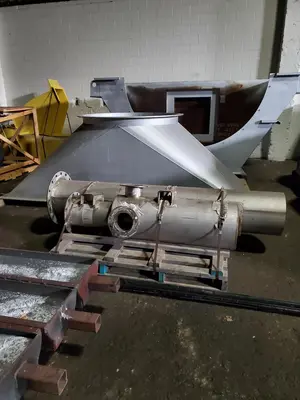

The kiln is driven by a 20 HP, 460-volt, three-phase motor with variable-frequency drive and Sumitomo gear reducer. The system includes the burner and associated controls, jackshaft-mounted drive assembly, girth sprocket, trunnion support bases, thrust rollers, inlet and discharge breechings, inlet chute, air lance, sight glass, hinged discharge access door, and safety guards.

The kiln features a substantial high-temperature refractory package, including 9" corundum brick with a 3" backer, Rescobond 3000G refractory dams, and refractory-lined inlet and discharge sections. The inlet chute and air lance are constructed of heat-resistant RA330 alloy.

No downstream gas-handling or emissions-control equipment is included.

Key specifications:

Manufacturer: FEECO International
Equipment type: Direct-fired rotary kiln
Original application: Recycled battery-material treatment
Intended recovery: Cobalt and nickel
Drum diameter: 7'6" ID
Drum shell length: 35'
Original design operating temperature: Up to approximately 2,300°F
Drum speed: Approximately 2.88 RPM
Drum slope: 0.25" per foot
Main drive motor: 20 HP
Electrical: 460 volt, three-phase, 60 Hz
Speed control: Variable-frequency drive
Gear reducer: Sumitomo
Burner: Maxon 6" Kinedizer, included
Burner controls: Included
Drum construction: 3/8" and 3/4" A36 carbon steel
Approximate overall dimensions: 46' L × 12'5" W × 14'2" H
Approximate drawing-listed weight: 250,964 lb
Gas-handling equipment: Not included
Emissions-control equipment: Not included

**Maximum usable temperature is dependent upon the refractory currently installed. Burner fuel type, firing rate, gearbox ratio, manufacturing year, original purchase price, and final component completeness should be confirmed from the original FEECO quotation and supporting documentation.
