Used PERRYMIX HV600 | Mixer Powder Nauta

Description

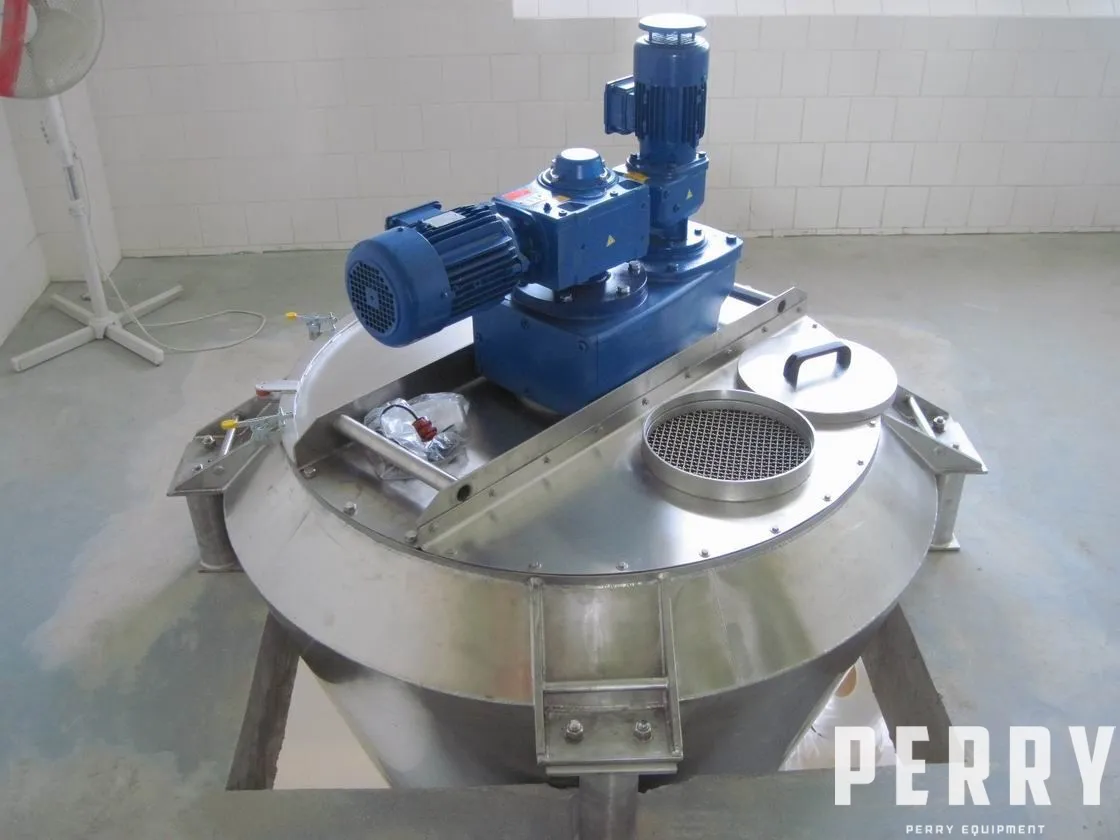

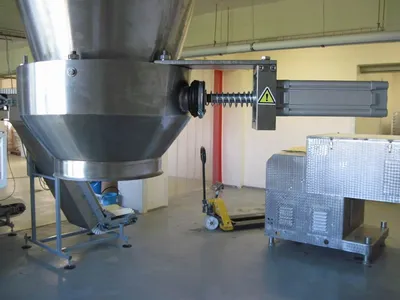

Used PERRYmix (Czech republic) model HV 600 stainless steel (Aisi 304) product contact parts Conical mixer. Effective volume 600 Liters, cone 1418 mm diameter X 1955 mm height, total height of the machine (bottom edge of the conical hopper-top edge of electric motor cover) 2835 mm. Round feeding inlet diameter 300 mm with cover. Standard mixing screw diameter 310 mm top driven through Nord gearbox by 3/400V/50 herz/1,5kW el. motor and supported by bottom Pintle bearing (hard metal). Screw speed 60 rpm. Stainless steel arm top driven through secondary Nord gearbox by 3/400V/50 herz/0,25kW electric motor. Arm speed 2 rpm. Pneumatically operated Rotary slide outlet valve with Conical discharge hopper. Mounted on (3) legs.
