Used FIB Industriele Bedrijuen BV 10,000 litre stainless steel vertical reactor / fermentation vessel.
Have one to sell?
ConditionUsed
1 available

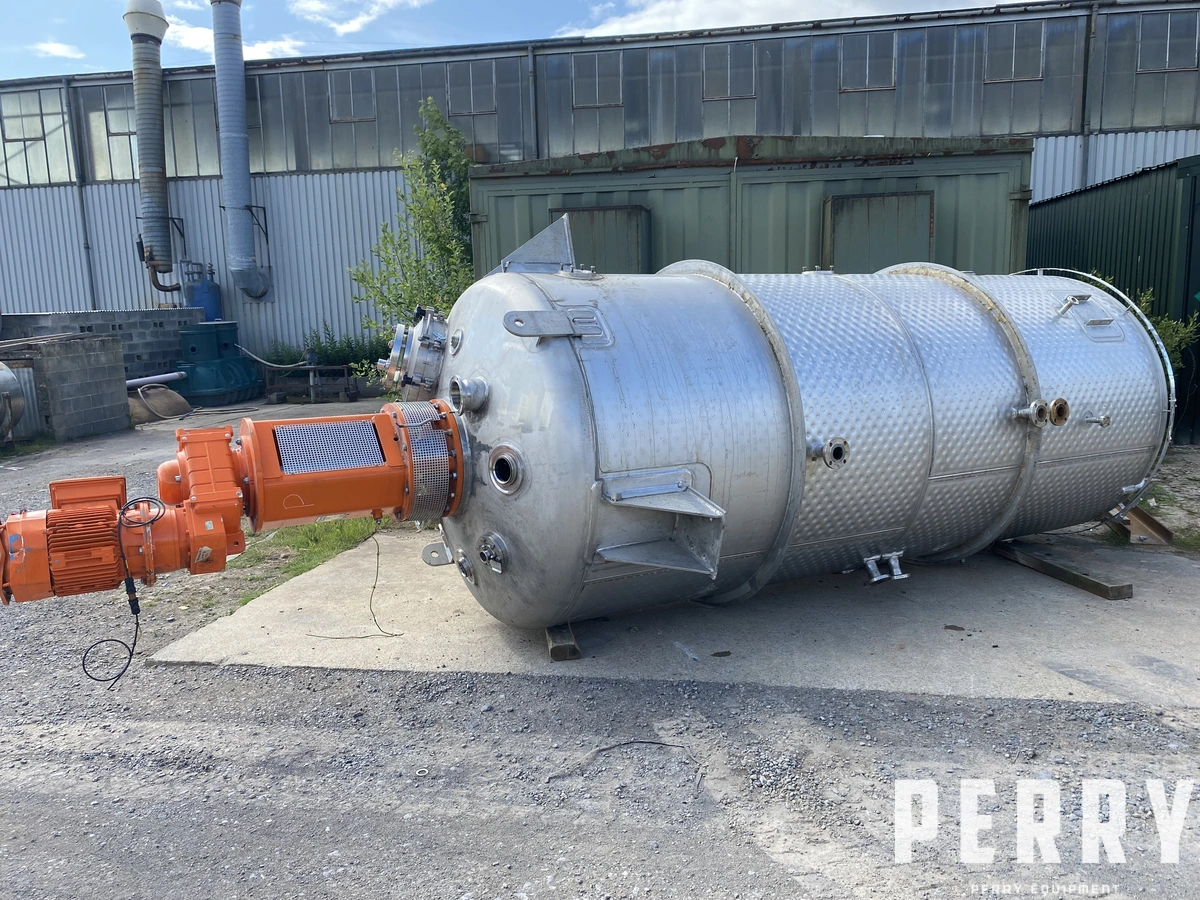

Used FIB Industriele Bedrijuen BV approximately 10,000 litre stainless steel vertical reactor / fermentation vessel. Unit has welded dished top and bottom heads. Unit measures approximately 1,700mm diameter x 3,700mm straight side. Internal rated 3 bar/full vacuum design pressure at 135 deg.c. External stainless steel jacket rated 10 bar/full vacuum design pressure at 135 deg.c. Unit includes top entry stainless steel 3-tier, 4-blade agitator with Jongia drive, 30kw 50/60hz motor through Siemens gearbox rated 17.95/1 ratio. Unit is mounted on stainless steel side supports.
Used FIB Industriele Bedrijuen BV approximately 10,000 litre stainless steel vertical reactor / fermentation vessel. Unit has welded dished top and bottom heads. Unit measures approximately 1,700mm diameter x 3,700mm straight side. Internal rated 3 bar/full vacuum design pressure at 135 deg.c. External stainless steel jacket rated 10 bar/full vacuum design pressure at 135 deg.c. Unit includes top entry stainless steel 3-tier, 4-blade agitator with Jongia drive, 30kw 50/60hz motor through Siemens gearbox rated 17.95/1 ratio. Unit is mounted on stainless steel side supports.
Imperial
| Capacity | 2,642 gal |
| Internal Pressure | 44 PSI |
| Internal Temperature | 275°F |
| Jacket Pressure | 145 PSI |
| Jacket Temperature | 275°F |
| Mixer/Agitator [Y/N] | Yes |
| Legs/Lugs/Mounting Ring | Lugs |
