Heat Austria TNV-7500 Thermal Oxidizer system

Description

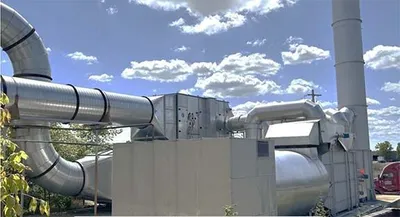

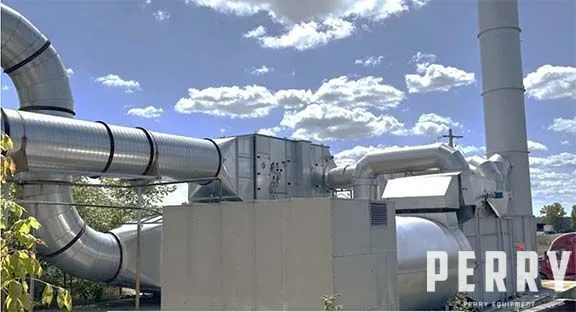

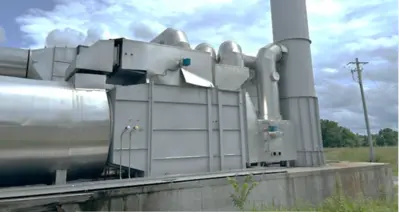

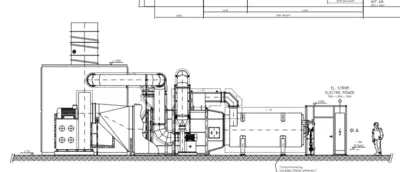

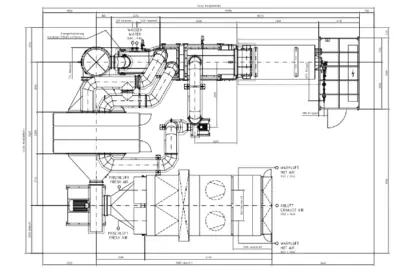

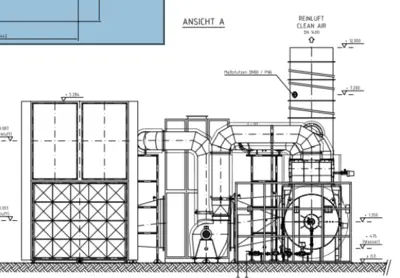

Unused Heat Austria TNV-7.500 Thermal Oxidizer
[A Zeolite Rotor System & Thermal Oxidizer with Recuperative Heat Exchanger]
Model: TNV-7.500
Year: 2019
Max. burner power: 800 kW -- 45,500 BTU/min

Main Technical Data
Exhaust air volume: max. 75.000 Nm3/hr
Exhaust air temperature: 20-35°C / 68-95°F
Dust content: <1.0 mg/m3, 800 (max. 1,100) mg/Nm
Pollutants (main constiuents): 75% Xilol, 25% other solvents
Additional fuel: natural gas
Pre pressure additional fuel: 100 mbar / 1.45 psi
Calorifics value additional fuel: 38,600 kJ/Mn3 / 1,036 BTU/SCF
Burner supply power: 700 kW
Time in combustion chamber: 1s
Combustion chamber temp.: 750°C (max. 800°C) / 1,382°F (max. 1,472°F)

General Information

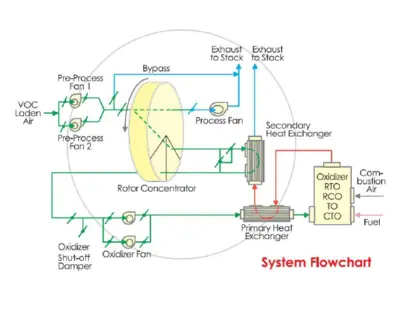

A Zeolite Rotor with RCO is an industrial air pollution control system that uses a Zeolite rotor concentrator to capture and concentrate Volatile Organic Compounds (VOCs) from large air volumes, which are then fed into a Regenerative Catalytic Oxidizer (RCO) to be destroyed.
This combined system is highly effective for treating large, low-concentration air flows, as the rotor significantly reduces the air volume and increases the VOC concentration, making the oxidation process in the RCO more fuel-efficient.

Technical Details
Desorption air exhaust heat exchanger HE 1
➢ Desorption air volume: 7,500 Nm³/h
➢ Desorption air temperature before HE: 60°C (140°F)
➢ Desorption air temperature after HE: 500°C (932°F)
➢ Clean air volume: 7,500 Nm³/h
➢ Clean air temperature before HE: 750°C (1,382°F)
➢ Clean air temperature after HE: 330°C (626°F)
➢ Exchanged amount of heat: 1,230 kW

Cooling air –exhaust air heat exchanger HE 2
➢ Quantity of cooling air: 7,500 Nm³/h
➢ Cooling air temperature before HE: 100°C (212°F)
➢ Cooling air temperature after HE: 200°C (392°F)
➢ Exhaust gas volume: 7,500 Nm³/h
➢ Exhaust gas temperature before HE: 330°C (626°F)
➢ Exhaust gas temperature after HE: 235°C (455°F)
➢ Exchanged amount of heat: 270 kW

Exhaust gas –hot water heat exchanger HE 3
➢ Exhaust gas volume: 7,500 Nm³/h
➢ Exhaust gas temperature before HE: Ø 250°C (482°F)
➢ Exhaust gas temperature after HE: 115°C (239°F)
➢ Secondary medium: Warm water with 30% glycol percentage
➢ Throughput: 31 m³/h
➢ Temperature before HE (secondary medium): 90°C (194°F)
➢ Temperature after HE (secondary medium): 110°C (230°F)
➢ Exchanged amount of heat: Ø 370 kW (max. 650 kW)

Exhaust air –fresh air heat exchanger HE 4
➢ Exhaust air volume: 75,000 Nm³/h
➢ Exhaust air temperature before HE: 25°C (77°F)
➢ Exhaust air temperature after HE: -3°C (26°F)
➢ Amount of fresh air: 75,000 Nm³/h
➢ Fresh air temperature before HE: -15°C (5°F)
➢ Fresh air temperature after HE: +15°C (59°F)
➢ Exchanged amount of heat: 750 kW

Exhaust gas and clean air values
➢ Organic C –Concentration after concentrator: max. 50 mg/Nm³
➢ Organic C –Concentration after RTO burner: max. 20 mg/Nm³
➢ CO –Concentration after RTO burner: max. 100 mg/Nm³
➢ NOx –Concentration after RTO burner: max. 100 mg/Nm³

Measured values as ½ hour average values based on actual measured oxygen content.

Resources
➢ Electric power: 3x480V, 60Hz + PE + N
➢ Rated power supply: 155 kW
➢ Natural gas: Hu = 38,600 kJ/Nm³
➢ Natural gas -pre pressure: pe = 100 mbar flow pressure /// pe = 1.45 psi flow pressure
➢ Natural gas -connected load: 85.0 Nm³/h
➢ Compressed air: oil-free /// dry
➢ Compressed air -pre pressure: min. 6.0 bar(g) /// min. 87 psi(g)
➢ Compressed air -connected load: 1.0 Nm³/h

Resource Consumption
Natural gas:
➢At 75,000 Nm³/h exhaust air without pollutant content: 75 Nm³/h
➢At 75,000 Nm³/h exhaust air with 800 mg/Nm³ solvent: 15 Nm³/h

Compressed air:
➢Compressed air consumption for cooling UV probe: 1.0 Nm³/h
➢ Compressed air consumption for emergency cooling concentrator: 100.0 Nm³/h

Electric power:
➢Without heat recovery (HE4): 120.0 kWh
➢ With heat recovery (HE4): 150.0 kWh
