3,000 Gallon Stainless Steel Mix Tank

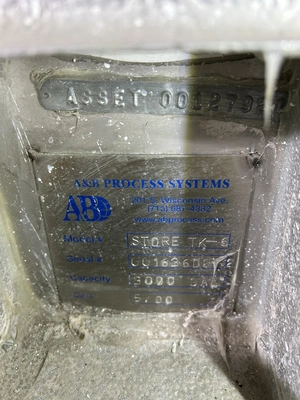

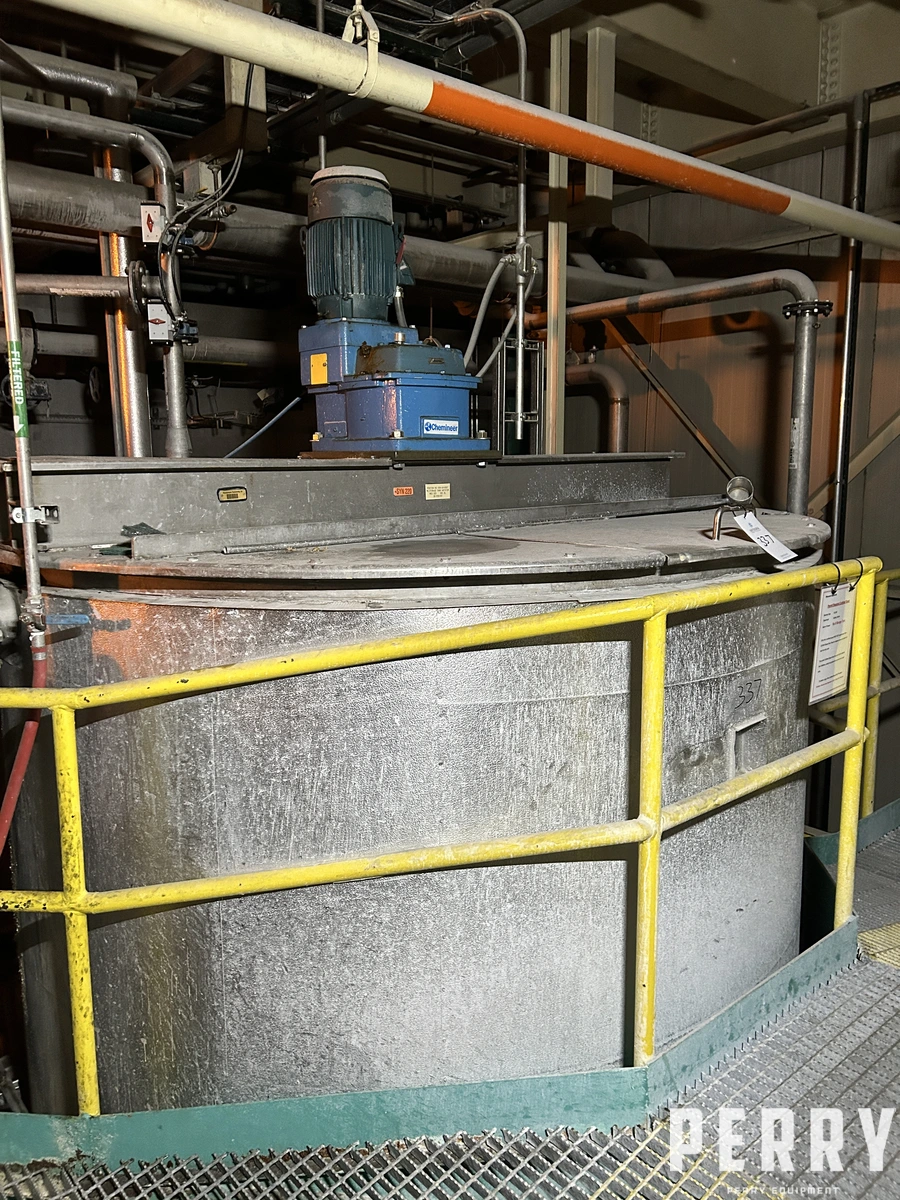

Used A&B Process Systems 3,000 Gallon Stainless Steel Mix Tank Approx. 100" diameter × 110" straight side Vertical agitator with approx. 40" paddle impeller (3) internal side baffles Top-mounted drive with Chemineer gearbox Flat top, cone bottom with central outlet Previously used as a storage/mix tank Tank Nameplate details: Manufacturer: A&B Process Systems Model: Store TK-6 Serial Number: 00163602-2 Capacity: 3,000 gallons Year: 05/2000 Material: Reportedly AISI 316L stainless steel Agitator drive: Motor: Reliance Electric Duty Master XE Power: 10 HP Voltage: 230/460 V, 3 Phase, 60 Hz Speed: 1755 RPM Frame: 215TC Enclosure: TEFC Service Factor: 1.15 Gear reducer: Manufacturer: Chemineer, Inc. Model: 3GTD-10 Input speed: 1800 RPM Output speed: 100 RPM
