Black Clawson Tandem Extrusion Coating Line 72" (1,830 mm) wide

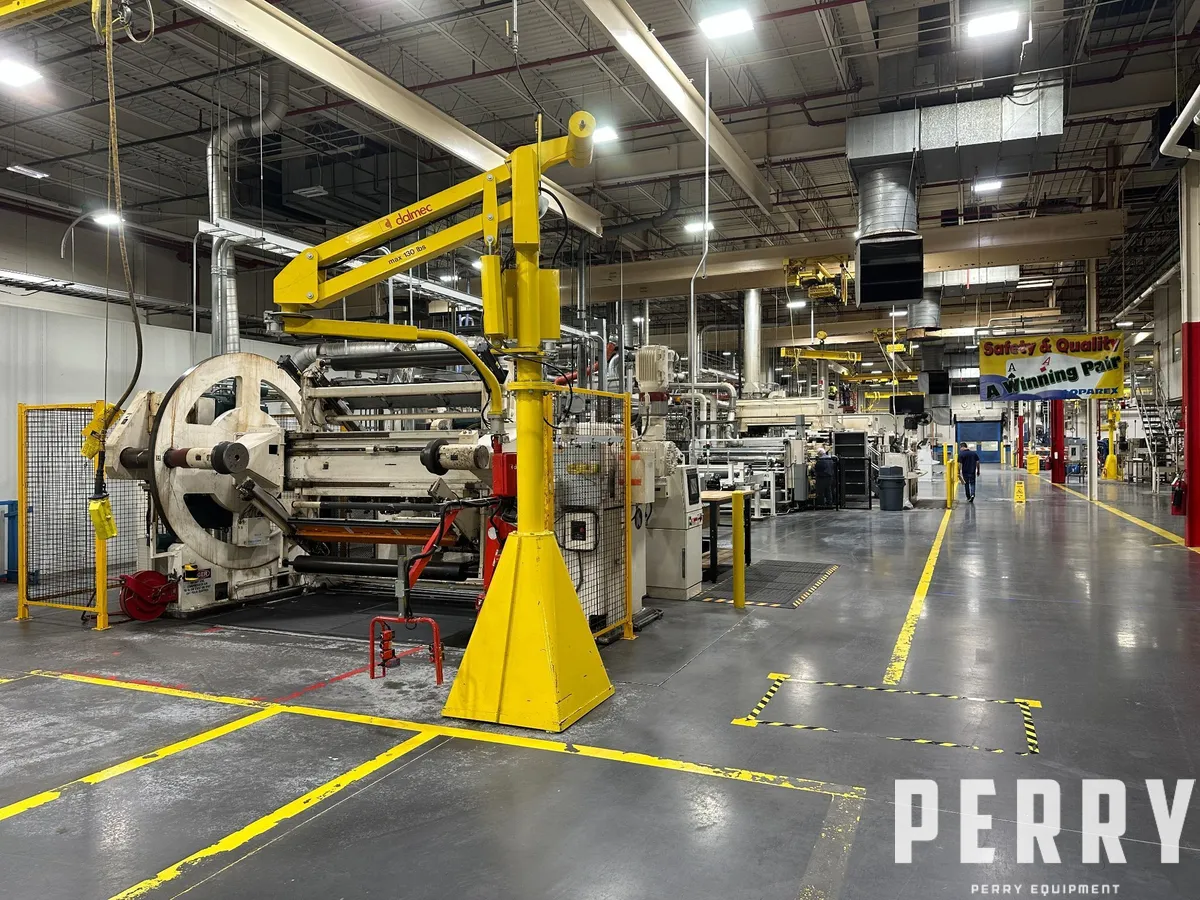

Used Black Clawson Tandem Extrusion Coating Line No. 9, 72" (1,830 mm) wide × 1,500 FPM (457 m/min) Tandem, double-sided extrusion coating line for paper or film release liner production Installed 1996, with major controls modernization in 2022 ($1.4 million investment) Twin extrusion, drying, treating, coating, and slitting systems allow dual-pass or double-sided operation Web Handling & Rewind Shaftless Turret Rewind, 72" (1,829 mm) width × 61" dia, 2-spindle with pressure roll Shaftless Turret Unwind, 72" width, 2-spindle with roll-handling manipulator (Dalmex, 165 lb & 130 lb rated units) Black Clawson web inversion table for inline substrate flipping (2) Pull-roll stations with Maxcess rotary shear edge-trim knives Application Co trim blower for edge-trim waste handling Bunting MN 5.2 PR 2000 inline metal detector, CE marked Extrusion System (2) Black Clawson Model 600 EXT 2 Extruders 6" Ø, 32.4:1 L/D, 225 RPM, XYZ bases, Lufkin gearboxes, 400 HP AC VFDs. Throughput: approx. 910 kg/hr each. (2) Cloeren EBR 82" sheet dies with motorized deckles (83 die bolts) and Autogauge computerized lip-adjustment Surface Treatment & Coating (2) Corotec corona treaters with dedicated controls (primary and reverse side) (2) Epic Products inline primer application stations (primary and reverse side) (2) AIS traveling-head thickness / gauging systems for inline and post-lamination quality control Drying & Curing (2) Black Clawson high-efficiency single-pass gas flotation dryers (pre- and post-extrusion) Gas dryers designed for thermal curing of coated webs before rewinding or lamination Casting, Laminating & Slitting (2) Integrated casting and slitting sections Each includes chill roll, Maxcess rotary shear edge-trim knives Supports single or dual-pass lamination and slitting Resin & Additive Handling (2) Maguire WSB-920T gravimetric blenders with scale hoppers Premier Pneumatics resin blending/distribution system (6) Stainless steel mixing tanks by G&F Manufacturing (25 gallons / 95 liters each) with hydraulic mixing
