Jacketed Mix Tank 4000 gallon stainless steel

Description

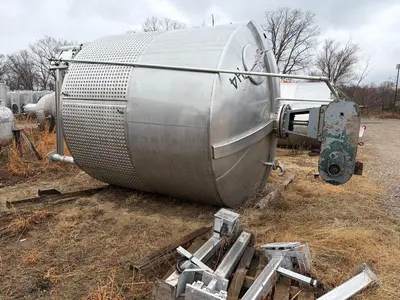

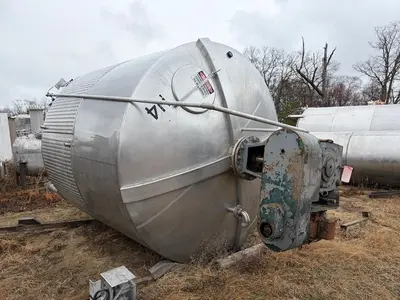

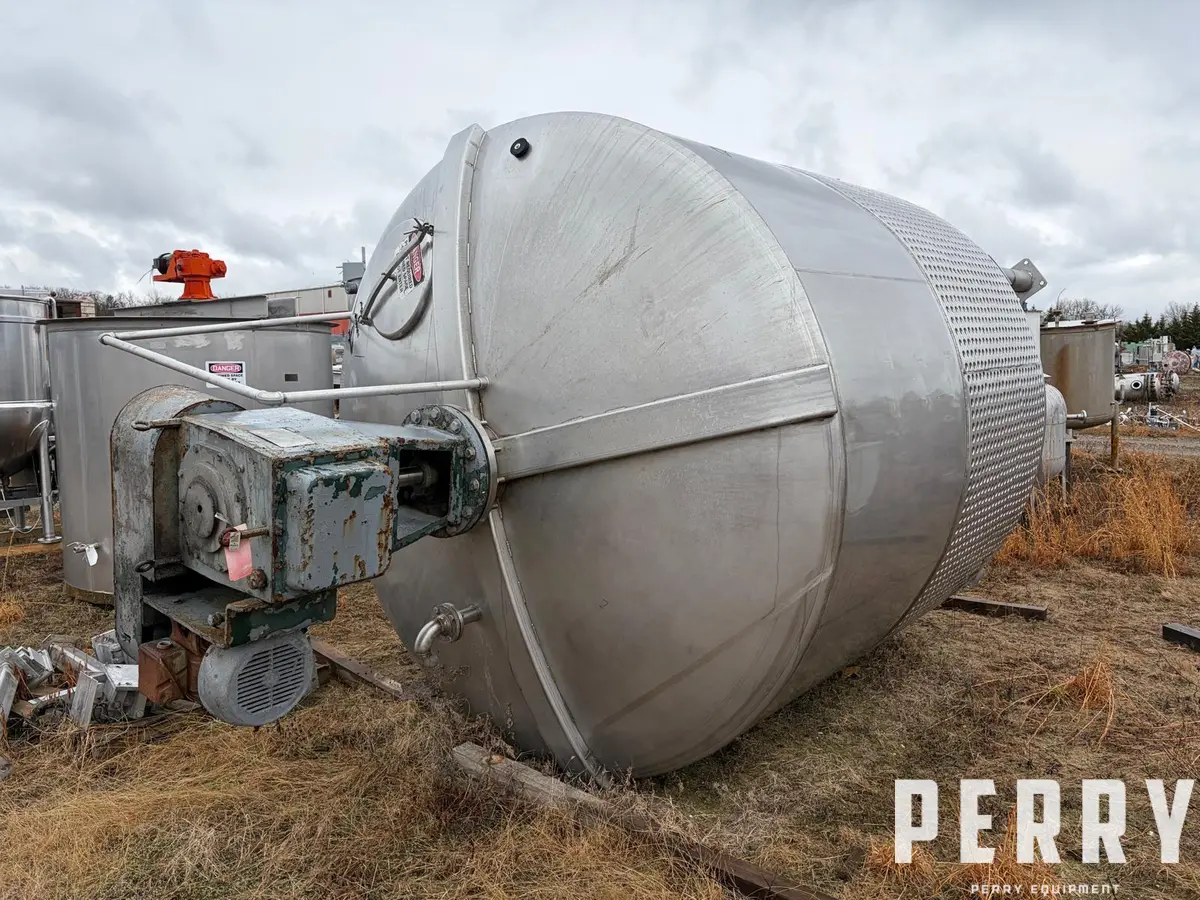

USED STAINLESS STEEL MIX TANK, APPROX. 4,000 GALLON

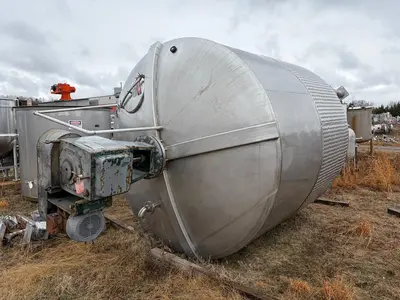

Top-entry, center-mounted agitator with gearbox and 15 HP motor

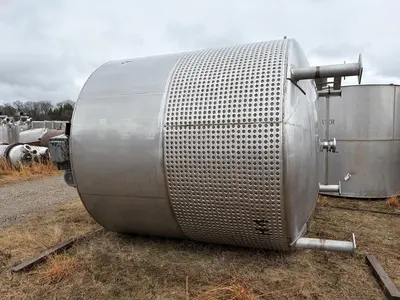

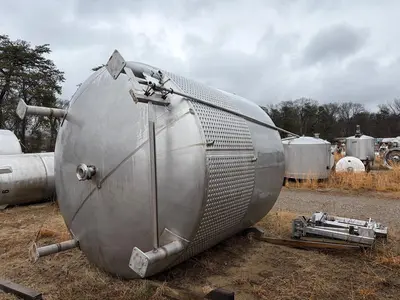

Bottom half dimple jacket

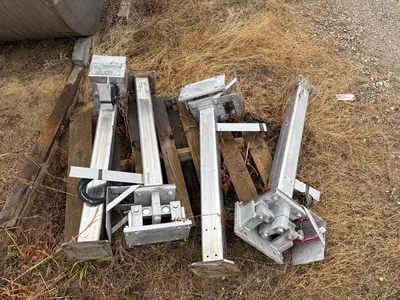

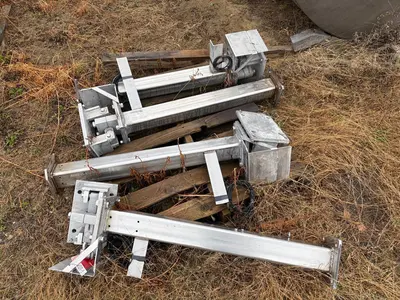

Mounted on legs

Capacity: Approximately 4,000 gallons (field measured)
Approximately 104" outside diameter x 96" straight side

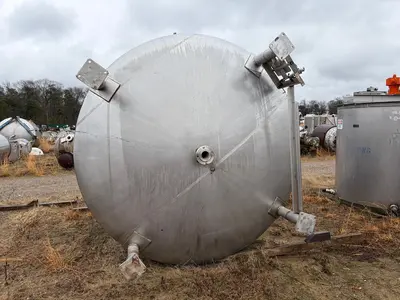

Dished top and bottom heads (approx. 15" each)

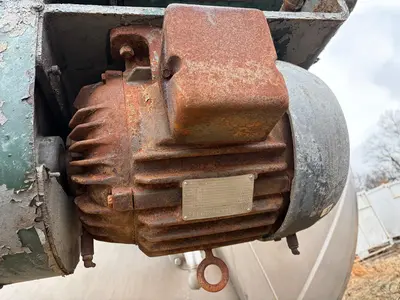

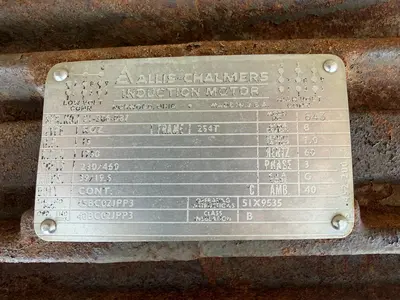

Agitator motor: 15 HP, 1750 RPM, 230/460V, 3 phase, 60 Hz

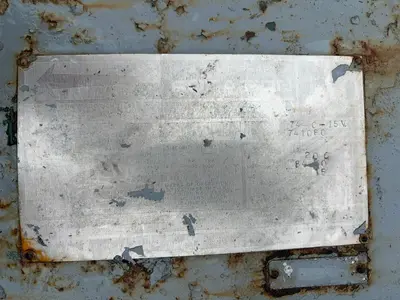

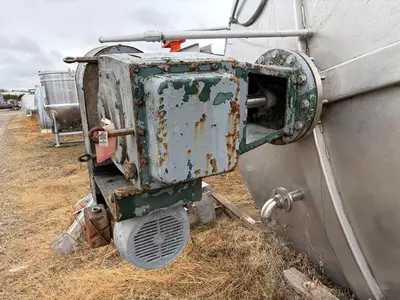

Gearbox: Model 74-C-15V (OEM not confirmed, nameplate worn)
Agitator shaft: Approximately 2.5" diameter
Dual stage 3-blade turbine agitator approximately 40" in diameter
(4) buffles and a CIP spray ball.

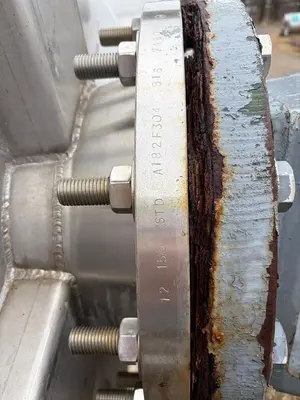

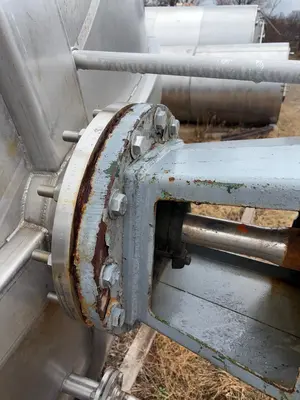

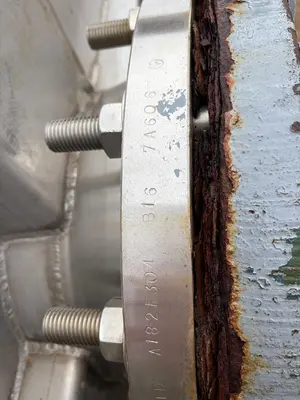

Top nozzle: 12" Class 150 stainless steel flange (A182 F304)
