    9000 Liters Vertical Stainless Steel 316Ti Mixing Tank Heidelmeier With Side Wall Agitator Ystral

    9000 Liters Vertical Stainless Steel 316Ti Mixing Tank Heidelmeier With Side Wall Agitator Ystral

    Have one to sell?
    +1 609 267 1600
    Info@perryvidex.com
    ConditionUsed
    1 available
    Have one to sell?

    Overview

    Type:
    Stainless Steel Tanks
    Manufacturer:
    HEIDELMEIER
    Model:
    9000 liters
    Year:
    2006
    Stock #:
    U2458-1
    Country:
    Poland

    Description

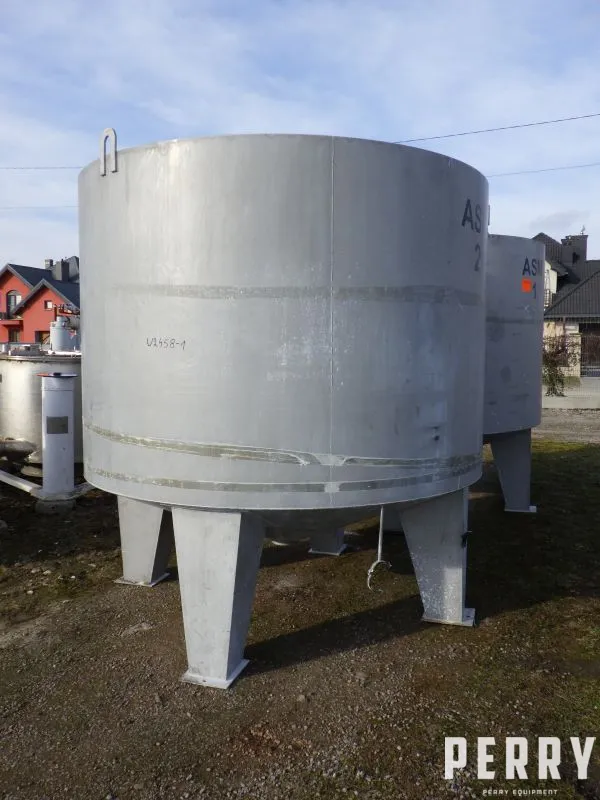

    Used vertical stainless steel 1.4571 (AISI 316Ti) mixing tank by Heidelmeier (Germany) with total volume 9000 l. Tank has internal diameter 2470 mm x length of the straight wall 1700 mm. Top flat, with bolted cover. There is an inspection manway with manually rised cover. Bottom welded, conical with central discharge. Tank is equipped with side wall agitator, type "jet stream" by Ystral type TFW-4. Driven directly by el motor 11 kW, 1475 rpm, 400/690 V, 50 Hz. Tank is mounted on 4 stainless steel legs. Last time used in chemical production.

    Capacity9,000 L2,378 gal
    Diameter2,470 mm8'
    Height1,700 mm6'
    Type of stainless1 (AISI 316Ti)1 (AISI 316Ti)
    Type Of HeadsFlat top and conical bottomFlat top and conical bottom
    Vertical/HorizontalVerticalVertical
    Legs/Lugs/Skirt4 stainless steel legs4 stainless steel legs
