40000 L Vertical Insulated Stainless Steel Mixing Tank

Description

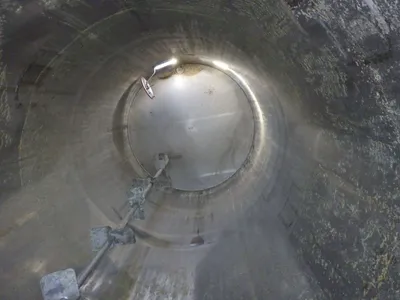

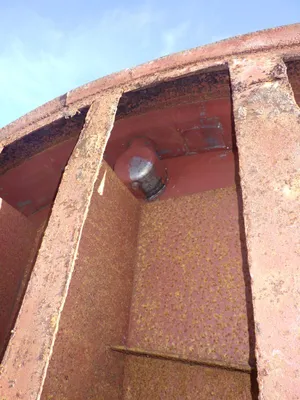

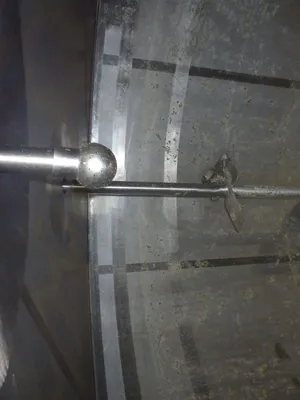

Used vertical stainless steel mixing tank by Pierre Guerin (FR) with a working volume 40000 l. Tank has internal diameter 3200 mm x straight side of the wall 6000 mm. Tank has side wall discharge outlet. Tank is mounted on carbon steel support. Side walls are thermally insulated and layered with non-corrosive steel. Tank has top mounted paddle agitator with 6 levels, driven by el motor and reducer. Agitator has bottom support and works with rotation up to 72 rpm. Top manway has diameter 450 mm and is equipped with bolted lid. There is also side wall manway with diameter about 400 mm, with bolted lid. Last time tank had been working in dairy.
