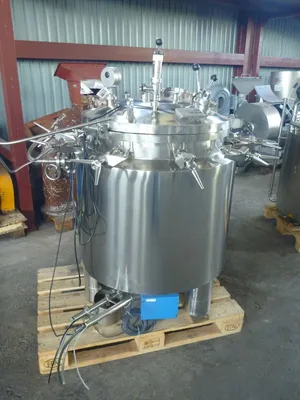

340 L Vertical Stainless Steel AISI 316L Aseptic Reactor By Diessel GMBH & Co.

Description

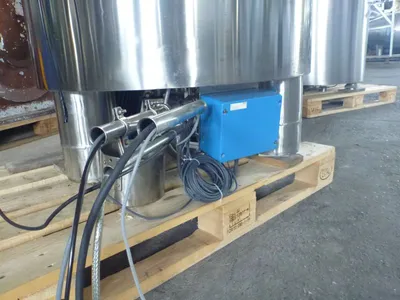

Used vertical stainless steel AISI 316L aseptic reactor with a total capacity of 340 l by Diessel GMBH & Co. (Germany). Reactor has a working volume of 250 l and is designed to operate at pressures ranging from -1 to 3 bar and temperatures up to 150 C. The heating and cooling jacket made of stainless steel AISI 304 has a capacity of 35 l and is designed to operate at pressures up to 3 bar and temperature up to 150 C. The jacket is insulated and clad with stainless steel sheet. Internal dimensions: diameter 742 mm, length of straight wall line 640 mm. On the side wall of the tank there are 2 stub pipes with mounted accessories. Reactor has open hinged dished top, bolted with clamps. The top equipped with an inspection manway with an internal diameter of 150 mm and 7 stub pipes with mounted accessories. The tank has a welded dished bottom head equipped with a central outlet with a SUDMO valve type SVP Fill with PTFE bellows. At the bottom there is a magnetic stirrer manufactured by PRG Präzisions-Rührer GmbH, type MR 100 LA – 12 driven directly by the ele motor with a power of 0.55 kW, 430 rpm, 50 Hz. The reactor is mounted on 3 legs equipped with tensions cells with a display. The equipment includes full technical documentation of the manufacturer and UDT in polish.
