KEK Kemutec Model 120 CM Stainless Steel Cone Mill

Description

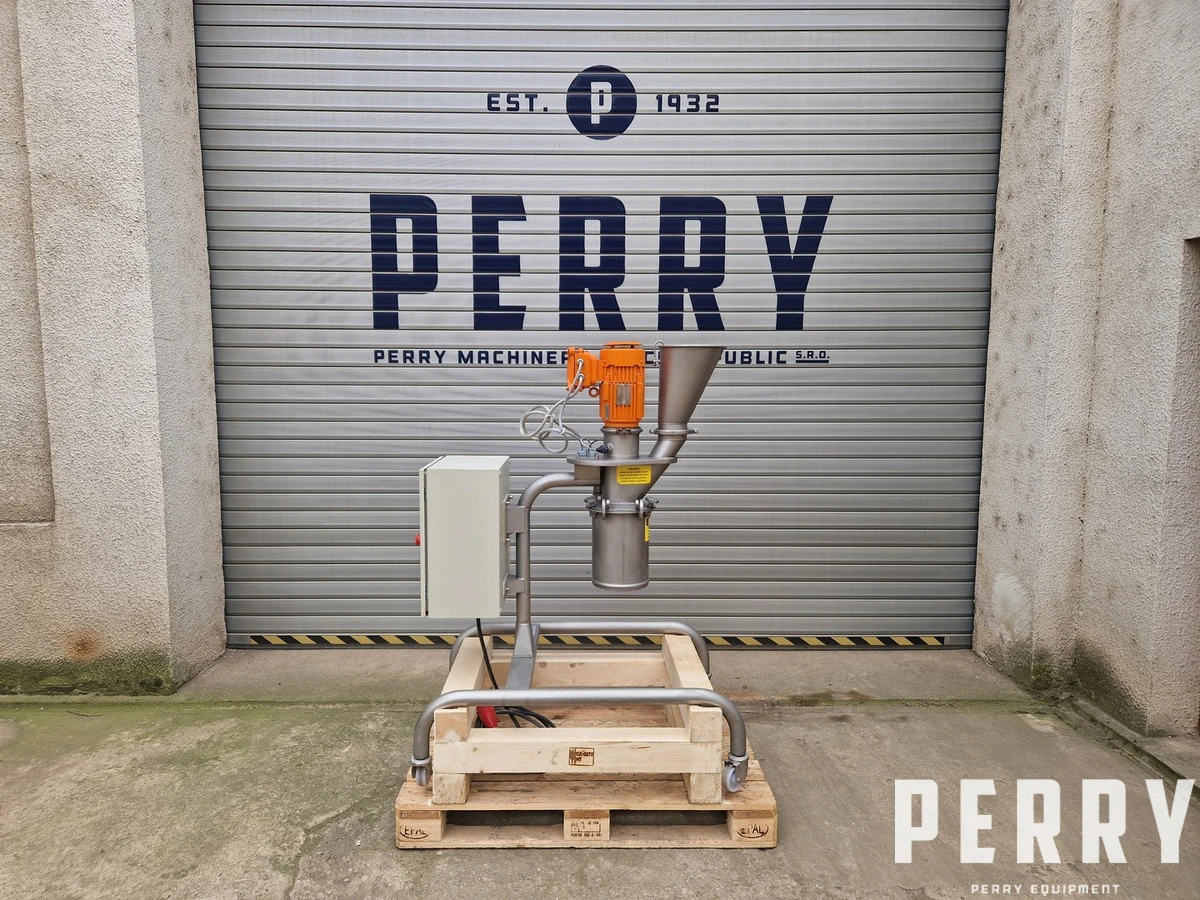

Used Kemutec KEK Model 120 CM stainless steel cone mill:

- Manufacturer: Kemutec KEK, Coperion group (https://www.coperion.com/en/products-services/process-equipment/milling-and-grinding/kek-cone-mill).
- Model: 120 CM.
- Rotor type: round blates beater direct top driven by LS Leroy Somer electric motor 0,75kW, 220-480V, 3ph/50Hz, 2840rpm. Motor is Atex rated: II 2G EExde II B T4. Rotor/blade has changeable speed via IMO Jaguar VFI. Potentiometer mounted on doors of main switchboard.
- Screens: (2) Cone screens type 0,85 and 1,0 associated with the machine. Cone screen top diameter 120 mm and bottom diamter 45 mm, cone height 80 mm.
- Others: Mounted on stainless steel frame with wheels. Control panel included.
- Overall dimensions: 1500 L x 850 W x 1100 mm H.
