3,125 Litre Hosokawa Model 35-MSC-44 Stainless Steel Nauta Mixer - Double Screw

Description

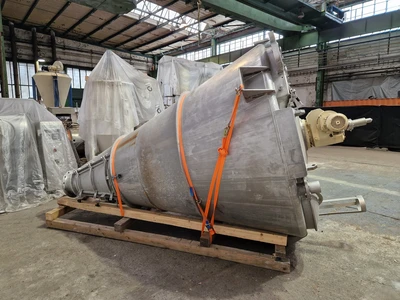

Used Hosokawa model 35-MSC-44 nauta conical double screw mixer.
- Working volume: 3125 litre.
- Working pressure: Atmospheric.
- Product contact parts: Stainless steel 1.4301.
- Cone has dimensions (approx.): 2334 mm diameter x 3366 mm cone height / 4609 mm total height (bottom edge of discharge valve - drive).
- Top semi-circular covers: 1x hinged cover with safety mesh, 1x bolted cover with man way and flange DN400
- Non-supported screw agitators (double screw design): driven by 11 kW, 1500 rpm, 400 V electric motor, final rpms of screws 70 rpm
- Arm: driven by 1.1 kW, 1500 rpm, 400 V electric motor, final rpms of arm 0.82 rpm
- Lump breaker: driven by 5.5 rpm, 1500 rpm, 400 V
- Includes: inspection doors at the bottom of cone (approx. 800 mm height x 500 mm wide at the top / 250 mm wide at the bottom), discharge valve.
- Mounted: (3) lugs.
