Fans CTF100/I Cooling Tower
Have one to sell?
ConditionUsed
1 available

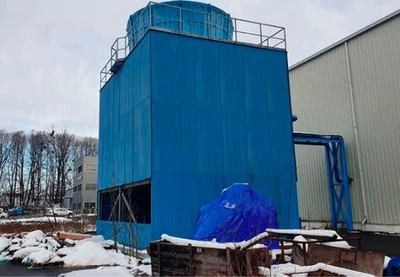

Used Fans a.s. model CTF100/I one bays mechanical draft cooling tower for cooling water type I. Water flow rate 600 m3/hour, Inlet temperature 45 deg.C, outlet temperature 25 degC., wet bulb 18.2 deg.C. Equipped with one 5000 mm diameter axial fan impeller with (5) blades rated 180 rpm, fan shaft power 66.7 kw, air flow 220 cum/sec, has (12) segments of diffuser, diffuser diameter 5000 mm x 2400 mm height. Cooling tower dimension (LxWxH): 8440 x 6040 x 8310 mm, empty weight 22175 kg. Steel structure included. New 2008.
