2,500 Kw 298 Psi Triveni Back Pressure Steam Turbine Generator

Description

Used Triveni (India) back pressure Steam Turbine Generator Set rated at 2,500 kW, new in 1988.
Consisting of:

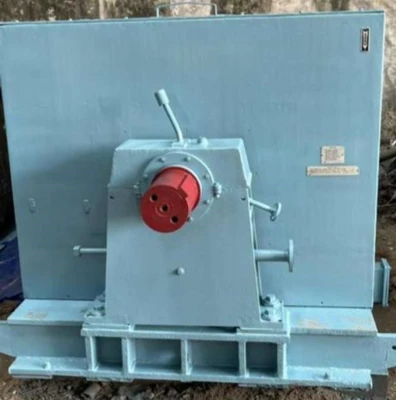

- Triveni (India) type 550mm back pressure steam turbine, new in 1988, with inlet steam pressure 21 kg/cm2 @ 340 Deg.C, and exhaust steam pressure 1/1.2 kg/cm2. With Triveni (India) gearbox, new in 1988, input speed 8250 rpm and output speed 1500 rpm, ratio 5.5/1. Turbine & Gear box alongwith coupling mounted on common baseframe (oil tank).
- Kirloskar Electric Co. Ltd alternator frame 4AB710/6, new in 1994, capacity 3125 kVA voltage 420V 3phase 50Hz, mounted on baseframe,
- Alternator coolers, oil coolers, AOP, valves, extension piece.
- Governing System
More details upon request.
