3' X 9" American Radial Arm Drill
Have one to sell?
ConditionUsed
1 available

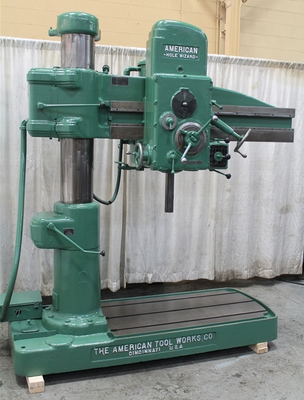

Used 4' X 9" American radial arm drill
Model: Hole Wizard
Arm length: 4'
Column diameter: 9"
Area of base: 53" X 30"
Auxilary L base: yes
Spindle speeds: (12) 50-1500 rpm
Spindle feeds: (6) .004 - .025 IPR
Spindle stroke: 9"
Spindle diameter: 2.5"
Taper in spindle: Morse
Distance spindle to column: 11" min, 48" max
Distance spindle to base: 16" min, 56" max
Vertical arm travel: 24"
Power elevation: yes
Motor: 5 HP
