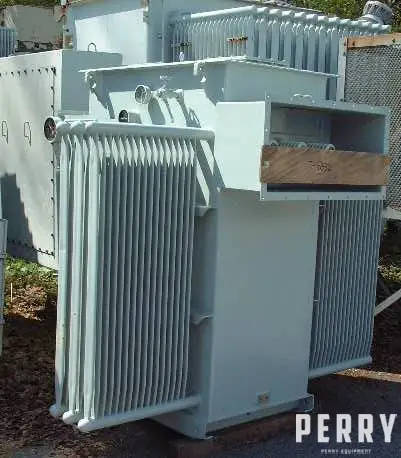

One 1500 kVA, Niagara, substation transformer, 3 phase, 60 Herz. 55 degrees C rise, class OA, 7.0% impedance, throat mounted bushings. High voltage 13200 Delta, BIL: 95 KV. Low voltage 480Y/277 WYE, BIL: 30 KV.
With 2 plus and minus 2 1/2 taps
total weight 9470 lbs
core & coils 4970 lbs
tank & fit. 3000 lbs
202 gallons of oil 1500 lbs
dimensions: 6'H X 7'W X 6'6"L
