Used Vibrating Feeder With Twin Hoppers By Scan-Vibro VAV

Description

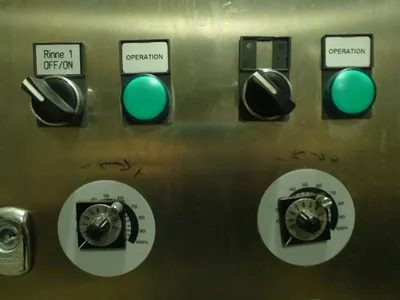

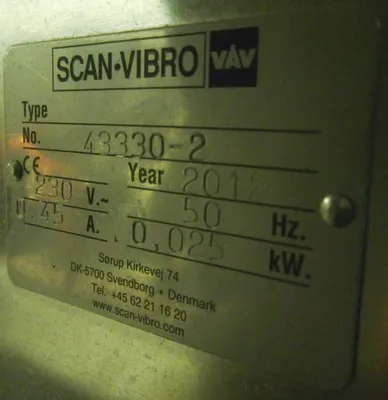

Used stainless steel mobile vibrating feeder by Scan-Vibro VAV (DK). Machine has twin vibrating hoppers each with volume about 15 l. Top dimensions of hoppers - W 185 mm x L 510 mm. Bottom discharge into stainless steel channel with width 100 mm, with mounted reduction to 50 mm. Discharge of both hoppers is on the high of 110 cm from the ground level. Each hopper is working with vibrating motor 0,025 kW, 230 V, 0,45 A, 50 hz and is equipped with pneumatically operated lump breaker. Machine is equipped with local control panel. Frequency of vibrations is adjustable. Machine is mounted on mobile stainless steel supporting frame.
