550 L Used Vertical Stanless Steel Jacketed Mixing Tank

Description

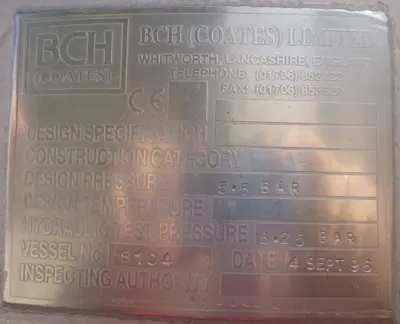

Used vertical stainless steel jacketed mixing/cooking tank by BCH Limited (UK) with total volume 550 l. Working volume about 400-450 l. Internal diameter 790 mm x lenght of straight side of the wall 550 mm. Top open, equipped with stainless steel safety bars. Tank is equipped with stainless steel horizontal frame agitator with wall scrappers, driven by el. motor and gearbox. Bottom spherical, jacketed, with central discharge outlet with diameter 160 mm. Outlet is equipped with pneumatic operated valve and manually operated valve. Final discharge outlet has diameter 100 mm. Stainless steel heating jacket is rated for work on pressure up to 6 bar at 165 C. Test pressure up to 8.5 bar. Tank is mounted on four stainless steel legs. Last time used in food industry.
