159 Cubic Foot Stainless Steel V Tumbling Blender

Description

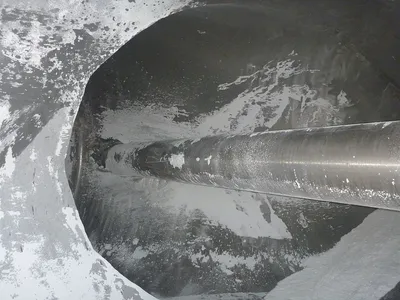

Used stainless steel contact parts polish made V type tumbling blender with total volume 4500 l. Working volume 3000 l. Mixer has two inspection/feeding inlets with bolted lids, each with diameter 450 mm. Central conical discharge with diameter 245 mm, with manually operated valve. There is an internal supporting shaft/baffle inside the mixing chamber. Machine is driven by el. motor 18.5 kW, 1480 rpm, 380 V, 50 hz, through belts and gearbox type WD650. Working rotation of mixing chamber up to 8 rpm. Supporting frames and operating platform designed in carbon steel. Includes technical documentation.
