4 nozzles line filler with capper polish made

Description

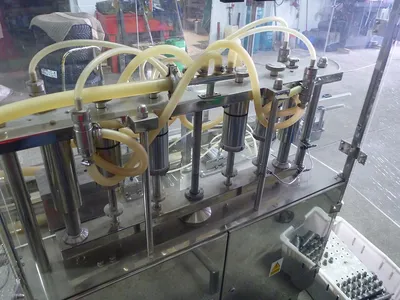

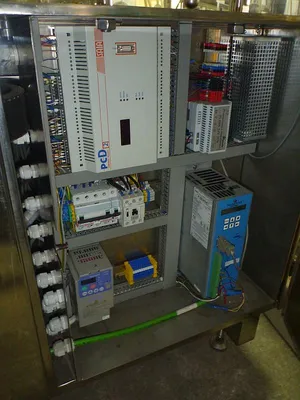

Second hand line filler by Vosko sp. z o.o. (PL). Machine has 4 nozzles simultaneously driven by electric. motor through the belt gearbox and screw. Each piston has internal diameter 60 mm x 100 mm , what gives approx. volume of each piston about 280 cm3. Machine has belt conveyer with width 100 mm x working length 1760 mm. Belt is designed in pp and has working speed adjustable via frequency converter. Machine has local control panel. Dose is adjustable for all four pistons via sensor which sets the upper and lower level of the piston stroke. Filler is equipped with mechanical capper. Capper is driven by el. motor 1.1 kW, 920 rpm, 230-400V, 50 hz and is equipped with belt conveyer with pp belt with width 100 mm x length 2070 mm. Belt has adjustable speed of work. Capper has missing die. Both machines are designed in stainless steel. Shipping dimensions: filler - L 240 cm x W 85 cm x H 170 cm , capper L 210 cm x W 90 cm x H 170 cm. Estimated weight about 1000 kg. Both machines new 2006.
