8/11 kW Gunter Papenmeier Stainless Steel Conical Mixer 150 Litre

Description

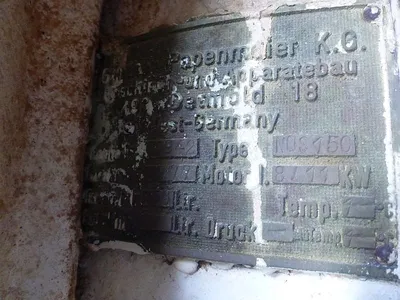

Used stainless steel conical mixer by Gunter Papenmeier type No3 150 with total volume 150 l. Mixer has welded elipsoidal top, bolted to conical bottom. At the top there is installed a belt driven propeller agitator. Agitator is driven by two speed electric motor 8/11 kW , 1460/2938 rpm, 380 V, 50 Hz. Mixer has two inspection manways with lids, each with diameter 250 mm. One manway has installed cleaning nozzle in the lid. Mixer has wall side discharge outlet with diameter 120 mm, equipped with valve and discharge pipe. Mixer is mounted on 3 lugs.
