63 Litre 6-1 Bar Internal, 6 Bar Jacket Technoglass Glass Lined Reactor

Description

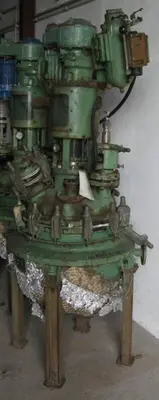

Used glasslined reactor by Technoglass (Italy) model AE 63 with working volume 63 and total volume 97 litres. Working pressure range from 6 bar to -1 bar with working temperature range from 200 to -10 celsji degrees. No bottom discharge. Reactor has a turbine agitator driven by electric motor 1.1 kW with 1390 rpm and reducer with ratio I=10.2. Thermocoupling and mechanical seal included. Glass of bowl in good condition. Reactor new 1988. Technical documentation included. Shipping dimensions: 750mm diameter x 1900mm height, weight netto about 300 kilos.
