64,000 Litre, 12 Bar Internal, 4.2 Bar Jacket, Stainless Steel Reactor
Have one to sell?
ConditionUsed
2 available

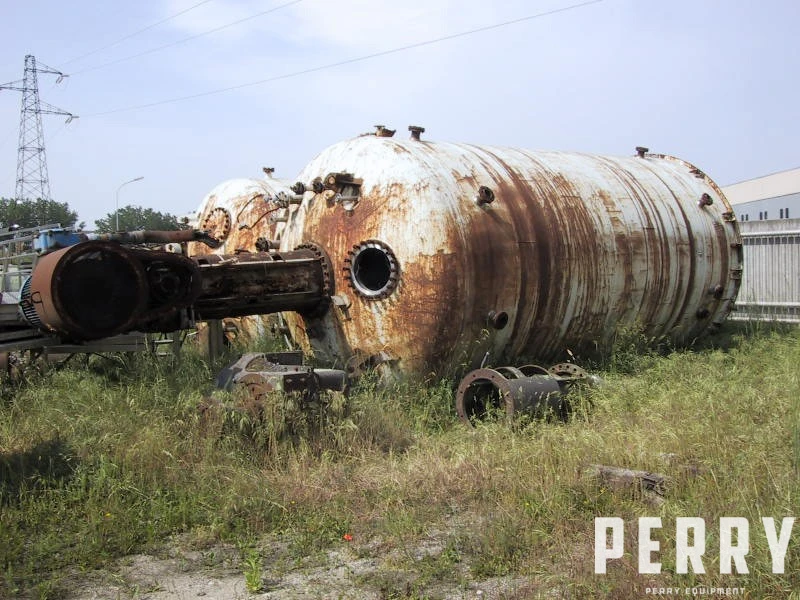

Used Zanon approximately 64,000 litre total capacity 304 stainless steel reactor. Internal approximately 3400mm diameter X 7810mm over dished ends. Total height approximately 11,160mm. Has welded dished top and bottom heads. Internal rated 12 bar design pressure at 135°C. Has carbon steel jacket rated 4.2 bar design pressure at 135°C. Includes internal heating coil. Heating surface for jacket 81 square meter, heating surface for internal coil 36 square meter. Includes 2-tier disc paddle agitator driven by 135 kW at 122 rpm. Includes mechanical seal
Used Zanon approximately 64,000 litre total capacity 304 stainless steel reactor. Internal approximately 3400mm diameter X 7810mm over dished ends. Total height approximately 11,160mm. Has welded dished top and bottom heads. Internal rated 12 bar design pressure at 135°C. Has carbon steel jacket rated 4.2 bar design pressure at 135°C. Includes internal heating coil. Heating surface for jacket 81 square meter, heating surface for internal coil 36 square meter. Includes 2-tier disc paddle agitator driven by 135 kW at 122 rpm. Includes mechanical seal
Imperial
| Capacity | 16,907 gal |
| Type of Stainless | 304 Stainless Steel |
| Internal Pressure | 174 PSI |
| Internal Temperature | 275°F |
| Jacket Pressure | 61 PSI |
| Jacket Temperature | 275°F |
| Dimensions | height 11,160mm |
