Unused 51 CFM Flowserve Sihi Model KPH55209 Vacuum Compressor

Description

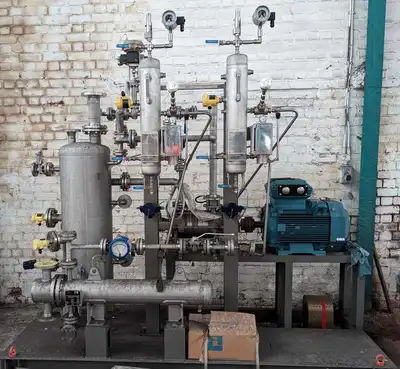

Unused Flowserve Sihi model KPH55209 liquid ring vacuum compressor. Flow rate at 87.6 m3/hr. Suction pressure rated 1013mbar, discharge pressure rated 7013mbar. Material of construction for body, guide disc and casing is 1.4408 (Cast Stainless Steel) and shaft is 1.4401 (316). Unit driven by 28kw, 2960rpm, 50hz motor with Flender coupling and double mechanical seal. Includes (1) 316Ti stainless steel gas-liquid separator vessel rated 7 bar/full vacuum design pressure at -10 to 100 deg.c. (1) 316Ti stainles steel U-Tube heat exchanger with a heat flow of approximately 24.5 (Kw), 10 bar/full vacuum design pressure at -20 to 100 deg.c.. System includes various values and instrumentation.
