2,000 Litre, 1400mm X 1175mm, 6 Bar, De Dietrich Glass Lined Vessel

Description

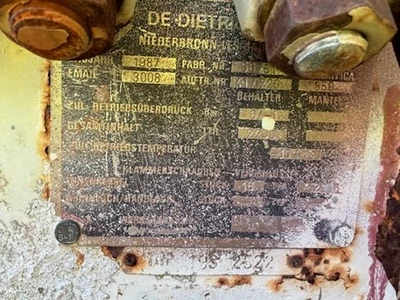

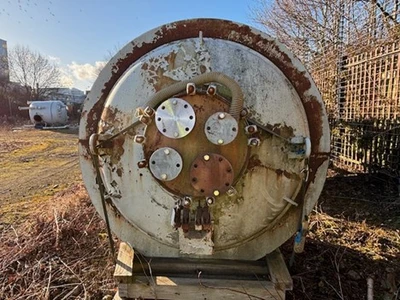

Used De Dietrich model RFS2000 vertical glass lined vessel. Total volume approximately 2,200 litre. Blue (3008) glass lined vertical tank / receiver with welded dish top and bottom manufactured by De Dietrich, France. Rated internal 6,0 /-1 bar @ -10 to 200°C. Vessel measures 1,4M diameter X 1,175M straight side + 0,26M for each dished end + top cover / lid. Openings top dish: main cover 500mm diameter incorporating 1 X 100mm, 1 X 80mm, 2 X 50mm flanges in lid. Centre bottom outlet: 1 X 100mm diameter. Unit can be supported by either shoulder ring approx. 400mm below split line of top cover (1,8M diameter '' C '' ring supplied) or can be supported / mounted on 4 X base pipe legs (legs not supplied) lifting / handling eyes 2 X top and 2 X bottom dish.
