HAMER BPC 23 Fully Automatic Blister Pack Machine

Description

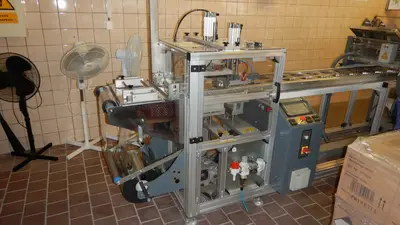

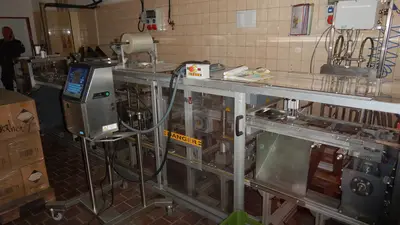

Little used Hamer Packaging Technology, Spain, model BPC 23 fully automatic blister pack machine. Maximum output 12 cycle/minute (720 cycles/hour). Currently set up for 290 mm width PET/PVC film foil, blister size 120 mm x 165 mm with inserted cardboard. Machine makes blisters in two parallel rows then output capacity is approx. 1400 blisters per hour. Blister pack machine consists of following modular working stations:
a) Film unwinder D400
b) Contact heater
c) Vacuum forming station
d) Product loading area - 1000 mm
e) Cardboard feeder
f) Back film unwinder
g) Heat sealing station
h) Inkjet
i) Die cutting station
j) Blister ejection
k) Film waste rewinder

Includes control panel with PLC, also included air cooler. New 2015 and reportedly very little used. Lenght of the whole machine approx. 7 meters. Also includes number of PVC and PET rolls.
