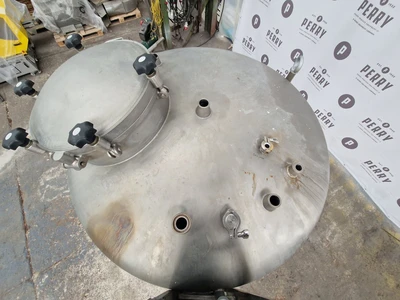

Used Tenez 2400 litre capacity vertical polished stainless steel storage tank. Internal polished Ra ≤ 0.4, vessel measures 1388 mm diameter x 1500 mm straight side x 2300 mm total height. Internal rated -1/3 bar maximum pressure at 135°C maximum internal temperature. Vessel is insulated and cladded by stainless steel plate. Has welded dished top head with inspection manway DN500 and welded dished bottom heads. Central bottom discharge DN50. Unit is mounted on (3) stainless steel legs.
