1400 Litre, 6 Bar Internal, 6 Bar Jacket, Stainless Steel Reactor
Have one to sell?
ConditionUsed
1 available

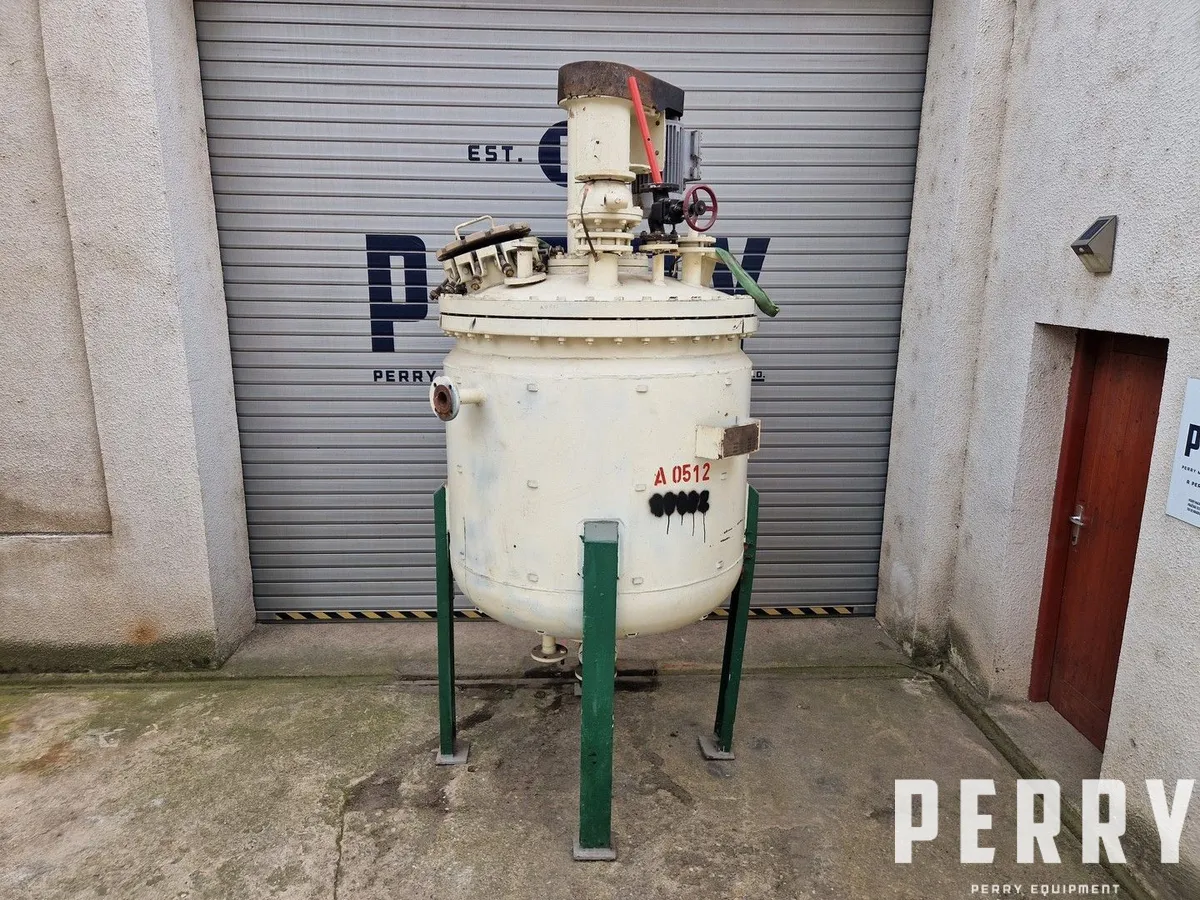

Used Kralavopolska Strojirna (Czech Rep.) 1 400L nominal capacity stainless steel (AISI 321) vertical reactor. Has bolted dished top and welded dished bottom heads. Vessel inside diameter 1200 mm and internal rated 6 bar maximum pressure and 100°C maximum internal temperature. Carbon steel jacket rated 6 bar maximum pressure, and 150°C maximum temperature. Central bottom discharge. 3-blade agitator driven through gear box by 1,5kW/50HZ/380V/690rpm EL. motor. Mounted on (4) legs. Includes manually operated valve.
Used Kralavopolska Strojirna (Czech Rep.) 1 400L nominal capacity stainless steel (AISI 321) vertical reactor. Has bolted dished top and welded dished bottom heads. Vessel inside diameter 1200 mm and internal rated 6 bar maximum pressure and 100°C maximum internal temperature. Carbon steel jacket rated 6 bar maximum pressure, and 150°C maximum temperature. Central bottom discharge. 3-blade agitator driven through gear box by 1,5kW/50HZ/380V/690rpm EL. motor. Mounted on (4) legs. Includes manually operated valve.
Imperial
| Capacity | 370 gal |
| Type of Stainless | 304 Stainless Steel |
| Internal Pressure | 87 PSI |
| Internal Temperature | 212°F |
| Jacket Pressure | 87 PSI |
| Jacket Temperature | 302°F |
| Legs/Lugs/Mounting Ring | Legs |
