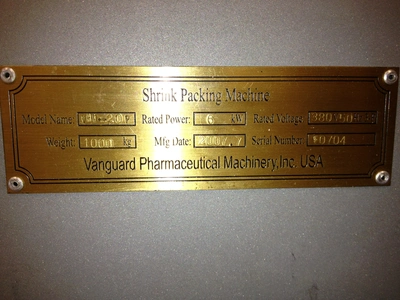

Vanguard Film Shrinking Machine Mdl VHW-20P

Description

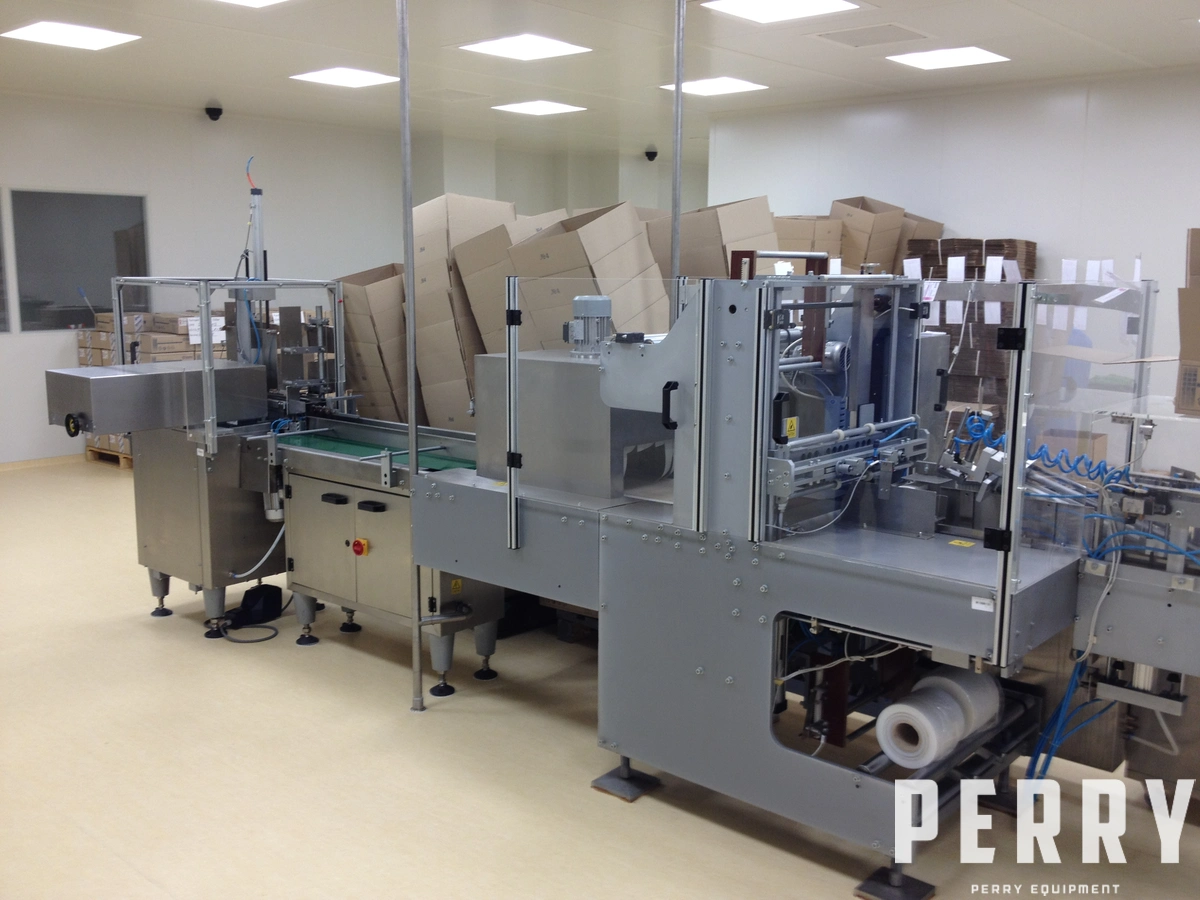

Reportedly unused Vanguard film shrinking machine, model VHW-20P,can assamble a stack of cartons and then wrap them with PVC or PE film. After heating the film, the packed product looks estheticaly and is easy for use. This machine is widely applied in pharmaceutical, food and light indutry.
This machine is cylinder driven and uses a photo-detection system to drive all parts.
Carton packing range:
min size (L/W/H) 72/33/12.
Max size (L/W/H) 185/122/92.
Packing material: PVC, PE film (thicknes 0.02-0.035mm).
Water consumption: 0.1 M3/hour.
Air consumption: 30M3/hour (preasure 0.6-0.7 mpa).
Capacity: 20package/min (12cartons/package).
Core inner diameter: 100mm max, diameter 300mm, width 240mm.
Machine dimensions: 3800"X1300"X1750".
Machine weight: 2200 lbs (1000kg)

the machine is equipped with auto-feeding function.
The machine has film cutting protect switch.
The number of stacked cartons can be designed by your requirement.
The heating temperature can be set according to the product s or film's need.
The speed of transferring belt can be regulated to meet different packing capacities.
