3317 Sq.Ft. Vertical Carbon Steel Shell and Tube Heat Exchanger
Have one to sell?
ConditionUsed
1 available

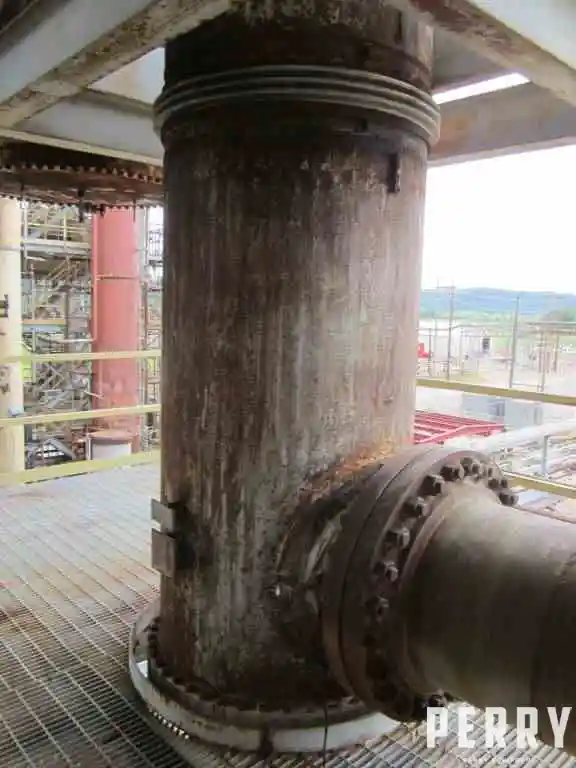

Used Slagle Manufacturing 3317 square foot vertical carbon steel shell and tube heat exchanger. Size 40-168, type BEM-EJ. (1253) 3/4" diameter X 14' long 14 GA tubes rated 240 psig @ 350°F. 41" diameter X 14' long shell rated 240 psig @ 350°F.
Used Slagle Manufacturing 3317 square foot vertical carbon steel shell and tube heat exchanger. Size 40-168, type BEM-EJ. (1253) 3/4" diameter X 14' long 14 GA tubes rated 240 psig @ 350°F. 41" diameter X 14' long shell rated 240 psig @ 350°F.
Imperial
| Surface Area | 3,317 ft² |
| Material of Shell | Carbon Steel |
| Material of Tubes | Carbon Steel |
| Shell Side Max. Pressure | 240 PSI |
| Shell Side Max. Temp. | 350°F |
| Tube Side Max. Pressure | 240 PSI |
| Tube Side Max. Temp. | 350°F |
| Configuration [Vertical/Horizontal] | Vertical |
| Tube Diameter | 1" |
| Number of Tubes | 1253 |
