41" Dia. 100 Gallon Cogeim Hastelloy Vacuum Pan Dryer

Description

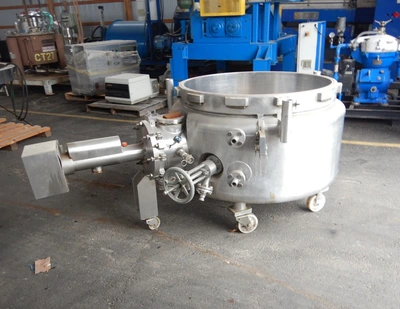

Used Cogeim Model EV 700 Multi-Dry Hastelloy Vacuum Pan Dryer
100 gallon (380 litre) working capacity
185 gallon (700 litre) total capacity
Internal rated 58 psi/full vacuum (full vacuum/4 bar) at -14°F/302°F (-10/+150°C)
Electro-polished interior
Jacket rated 100 psi/full vacuum (full vacuum/6.9 bar) at -14°F/302°F (-10/+150°C)
Heated agitator rated 100 psi (6.9 bar) at -14°F/+302°F (-10/+150°C)
Matcon charging station

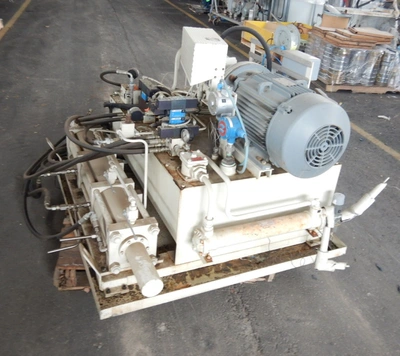

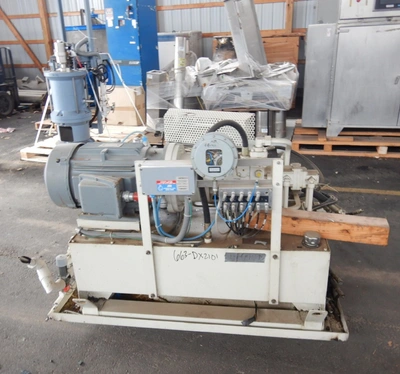

Hydraulic drive 25 HP motor, 3 phase, 60 cycle, 230/460 volt
Manufactured by 3V Cogeim with VRX-3102 vacuum pump made by Busch, with 7.5 HP motor 3 phase, 60 cycle, 230/460 volt
Vacuum 1.5 torr
With control panel, condenser, and cast tank

Click on the link below to see a video of the machine running.
