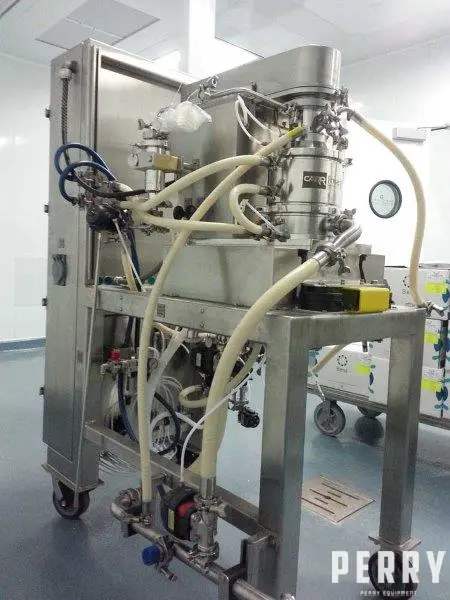

6" Carr Powerfuge P6 Stainless Steel Centrifuge Separation System

Description

Used Carr Centrifuge Stainless Steel Separation System
Manufacturer: Carr
Model: Powerfuge P6
Serial: 0404
Operating feed flow range: 0.1-1 liter/min

Additional information:
Maximum solids bulk density: <1.5. Cooling system flow rate: at 10 C 1.0 liters/minute, at 25 C 1.5 liters/minute. Maximum internal pressure 15 psi. Operating temperature range 2 C to 40 C, 120 C during sip.
Centrifuge system requirements: 230 volts AC, 20 amps, single phase, 50/60 hertz.
Torque settings: bowl screw 145 +/- 5 inch-lbs, feed Cone screw 105 +/- 5 inch-lbs.
Bowl: inside diameter 152 mm (6"), pool surface diameter 102 mm (4"), bowl volume 1.1 liter, solids space (nominal) 1.0 liter, baffles 3 (integral), material ti-6al-4V titanium Alloy, centrifugal force at bowl wall 20,000 G'S at 15,325 rpm, centrifugal force at pool surface 13,333 G'S at 13,325 rpm.
Contact materials (except bowl): metal 316L & 17-4 SS, elastomers EPDM & thermoplastic.

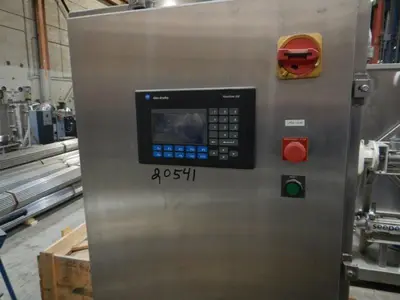

Main drive: motor type 1.5 HP 230 volts, TEFC, 3 phase variable frequency AC, base speed 3450 rpm at 60 hertz, drive to spindle ration 1:3, controller Allen Bradley 160 SSC variable speed controller. Scraper drive: motor type pneumatic, base speed 50 rpm at 40 psi, gear reduction ratio 10:1, bowl speed (scraping) variable 30-120 rpm, torque 300 inch-lbs at 20 rpm 60 psi.
