(3) UNUSED Siemens SGE-100EM Natural Gas Skid-Mounted Generator:
ENGINE: 2769 BHP, 2065 kW, SGE-100EM, V12 Cylinder, Bore/Stroke 195 mm/280 mm, Compression Ratio 13.5:1, Electrical Efficiency 44.5%, Emissions NOx 1 g/bhph, Fuel Consumption 4,443 BTU/kWh, 1200 rpm, CW Rotation.
GENERATOR: Leroy Somer Nidec 2479 kVA, 1983 kW, 12,470 Volt, 3 Phase, 60 Hz, Power Factor 0.8, Type LSA 54 VL75/6P, WYE, 6 Wires, Brushless Exciter, CW Rotation, Self-Ventilated.
- Generator Terminal Box with Voltage Regulator D550 Digital, 3 x Current Transformers (CTs), 2 x Voltage Transformers (VTs).
- 1200 AMP Siemens GMSG, 40 kA, 125 V CDA Trip and Close Generator Circuit Breaker, with SEL-700G Generator Protection Relay.
- Gas Train Inlet Pressure 14.5 - 58 PSIG.
- Starting Batteries for Electric Start.
- Oil Pump, Oil Filter, Oil Cooler, Oil Piping.

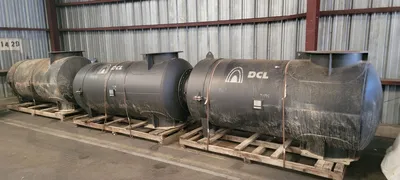

- Exhaust Expansion Joint, Exhaust Silencer, Exhaust Pipe.
- Vibration Pads for Mounting.
- Young Touchstone Radiator, 26.9 BHP Fan, 122 GPM Air/Water Cooled, Piping, Water Pump.
- Siemens PLC GCS-E Control System with Instrumentation.
- Siemens 12,470 V Switchgear lineup available.
Approximate Shipping Dimensions: Skid 22’ L x 7’9” W x 9’6” H, 58,993 lbs.
---
