1,700 Litre Hosokawa Model 20-MSC-43 Stainless Steel Nauta Mixer

Description

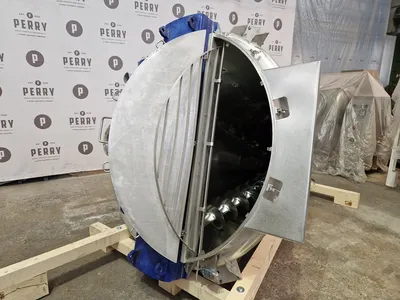

Used Hosokawa model 20-MSC-43 Nauta conical screw mixer.
- Working volume: 1700 litres.
- Working pressure: Atmospheric.
- Product contact parts: Stainless steel 1.4301.
- Cone dimensions (approx.): 2048 mm diameter x 2820 mm cone height / 3523 mm total height (bottom edge of discharge valve to drive).
- Top semi-circular covers: 1 x hinged cover with safety mesh, 1 x bolted cover with flanges DN200 and DN100.
- Non-supported screw agitator: driven by 5.5 kW electric motor, final speed of screws 70 rpm.
- Arm: driven by 0.55 kW electric motor, final speed of arm 1.2 rpm.
- Includes: discharge valve.
- Mounted on: 3 lugs.
