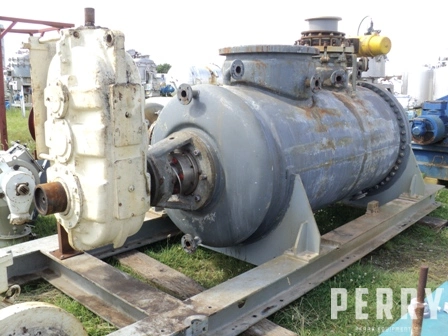

3,000 Litre Draiswerke Model HT3000 Titanium Turbulent Mixer Dryer

Description

Used Draiswerke model HT3000 titanium turbulent mixer/dryer. Approximately 3000 litre working capacity and 3580 litre total capacity. Internally rated for full vacuum and 6 bar design pressure at 200°C. Heating jacket with 240 litre capacity, rated for full vacuum and 6 bar design pressure at 200°C. T-arm mixing blades driven by a 37/55 kW, 380 volt, 3-phase, 50 Hz motor running at 984/1480 rpm, coupled to a Flender model KZO 360 gearbox rated 90/65 kW with 1180/590 rpm input and 42/21 rpm output. Equipped with mechanical seals on the shaft and rotary valve discharge.
