Used Stainless Steel Progressing Cavity Pump Inotec/Netzsch

Description

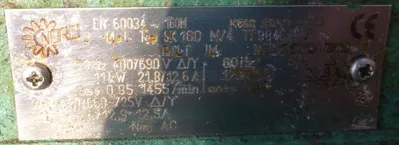

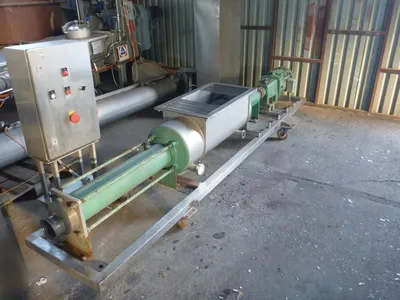

Used stainless steel contact parts progressing cavity pump by Inotec/Netzsch type NEMO NM 076 SF 02 S12B. Machine is driven by an electric motor 11 kW, 1455 rpm, 400/690 V, 50 Hz, via a Nord gearbox. Working rpm of rotor up to 201 rpm. Pump has a feeding inlet with dimensions L 750 mm x W 365 mm, limited by safety bars to dimensions L 320 mm x W 365 mm. Product is moved with a stainless steel screw, with a diameter of 300 mm. Lead of screw 145 mm. Below screw there are two liquid outlets, each with a diameter of 50 mm. Pump product discharge outlet has a diameter of 100 mm. Pump has a local control panel and is mounted on a stainless steel mobile frame. Technical documentation is not included. Last time used in the food industry.
