60 L Vertical Mobile Stainless Steel Mixing Tank

Description

Used vertical stainless steel mixing tank with a total volume of 80 litres. Working volume approximately 60 litres. The tank has an internal diameter of 396 mm and a straight wall length of 635 mm. Bottom is ellipsoidal, with a central discharge outlet fitted with a manually operated valve. Top cover is half open. The tank is equipped with a disc agitator driven through a variable speed gearbox and electric motor 0.75 kW, 1410 rpm, 220/380 V, 50 Hz, EExeIIT3. The working rotation speed of the agitator is adjustable in the range from 128 up to 1084 rpm. The tank is mounted on five stainless steel legs, equipped with wheels.

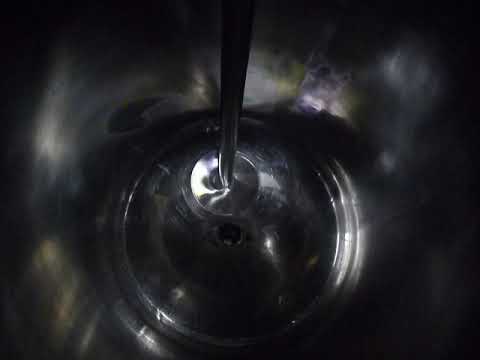

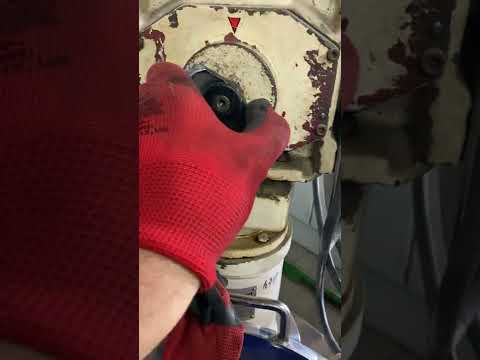

Click on the link below to see a video of the machine running.
