200 Litre Kemutec Kek Model 200EC Stainless Steel Jacketed Ribbon Blender.

Description

Comprehensively tested and refurbished, used Kemutec Kek model 200 EC 316 Stainless Steel Jacketed Ribbon/High Speed Mixer.

Manufacturer: Kemutec
Material: 316 Stainless steel
Capacity: 200 litre working capacity, 215 litre total capacity (product dependent)
Mixing trough: 565mm diameter x 860mm length
Discharge type: Centre bottom discharge with manual plug-type valve
Type of blades: Cantilever design with bolted double ribbon mixing blade
Motor: 7.5 kW, 400 volt 3-phase 50 Hz & 480 volt 3-phase 60 Hz, 11,460 rpm motor via David Brown Radicon gearbox rated 15.5:1
Revolutions per minute: 53 RPM

Also includes: Hinged lid and end cover
- Spare double ribbon and T-arm mixing blades
- Provision for chopper, but none fitted
- Stainless steel jacket rated 4.4 bar design pressure at 154.83 °C
- Internal rated atmospheric pressure at 50 °C
- Mounted on mobile base

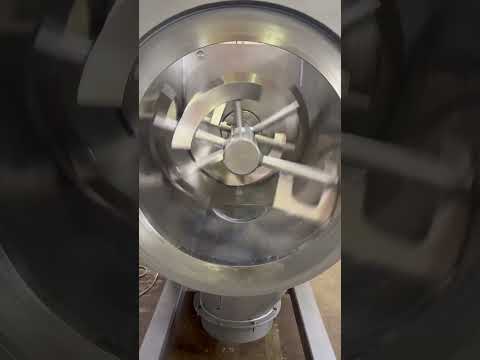

A video of this mixer is available below:
https://youtu.be/7EdEz13aEU4
